APPLICATION
EXAMPLE

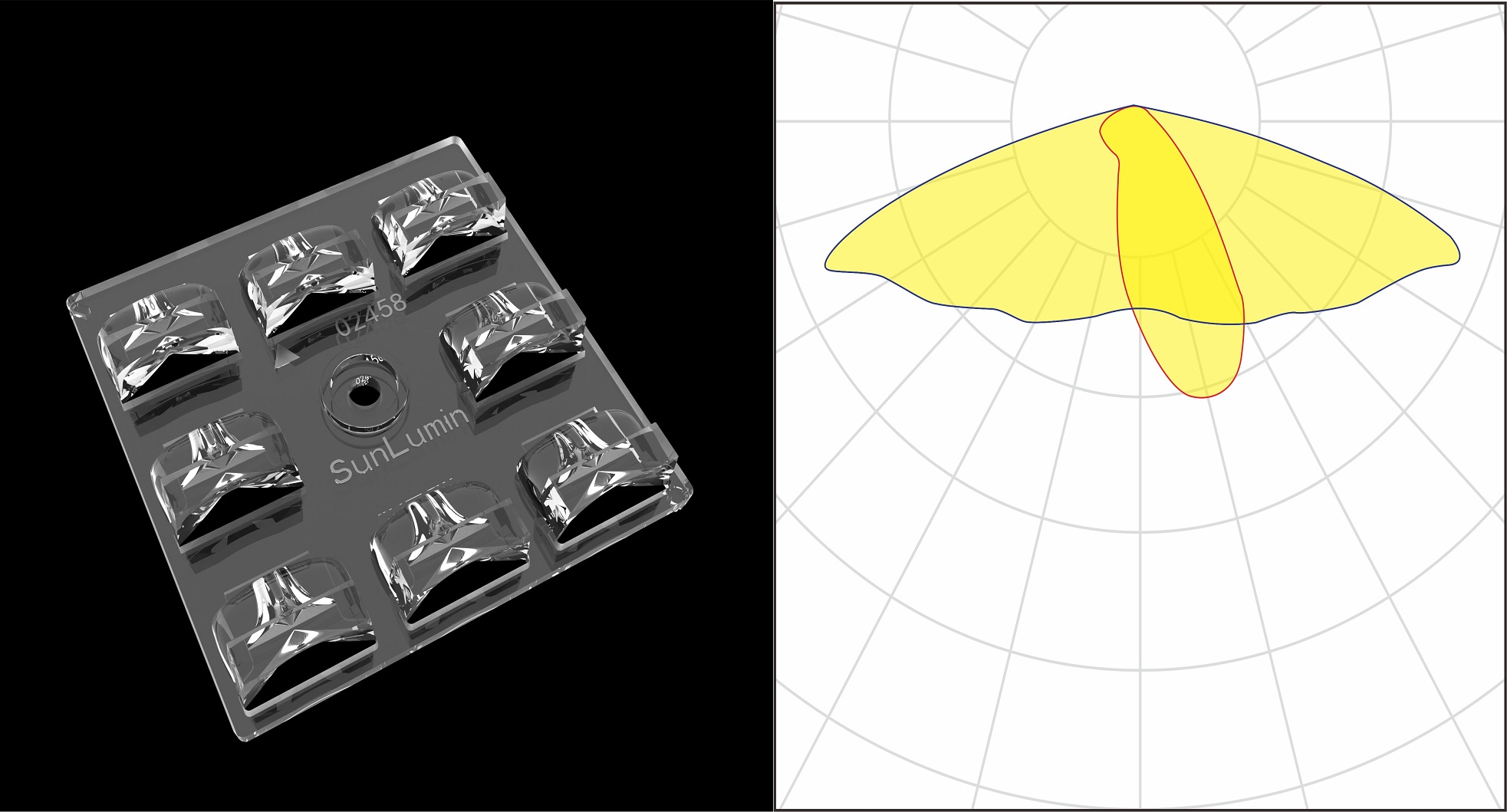

Street lighting with MAXWELL-8-LN2_3535 Lens MAXWELL-8-LN2_3535

If you can't find the information you need here, please contact us for more guidance.

MAXWELL-8-LN2_3535 ADVANTAGES:

1. 8pcs 3535 size Ceramic dome LED package

2. Beam for EN13201 P-class and M-class requirements with high poles or where road width is less the pole height

3. Long pole distance

4. Energy saving, only 8800 lm to reach

Find all optics (https://www.sunlumin-optics.com/products/products-series)

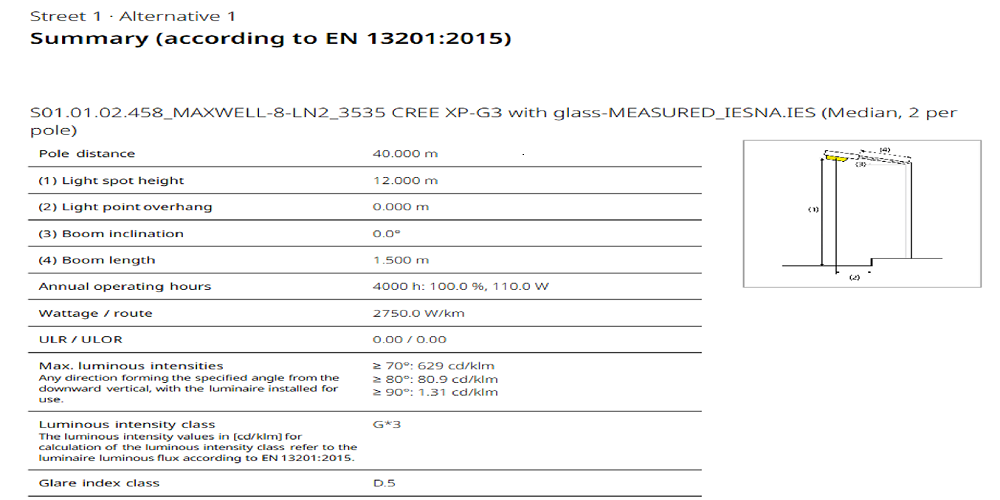

SETUP:

Application:

Steet Lighting

Road class:

M3, R3

Optics:

LED:

CREE XPG-3

Road width:

7 m

Number of lane:

2 x 2

Arrangement:

Median

Pole distance:

40 m

Light center height:

12 m

Boom angle:

Overhang:

1.5 m

Maintence factor:

0.8

Total lumen / Luminaire:

8800 lm

Power consumption / km:

2700 w / km
