Product Catalogue

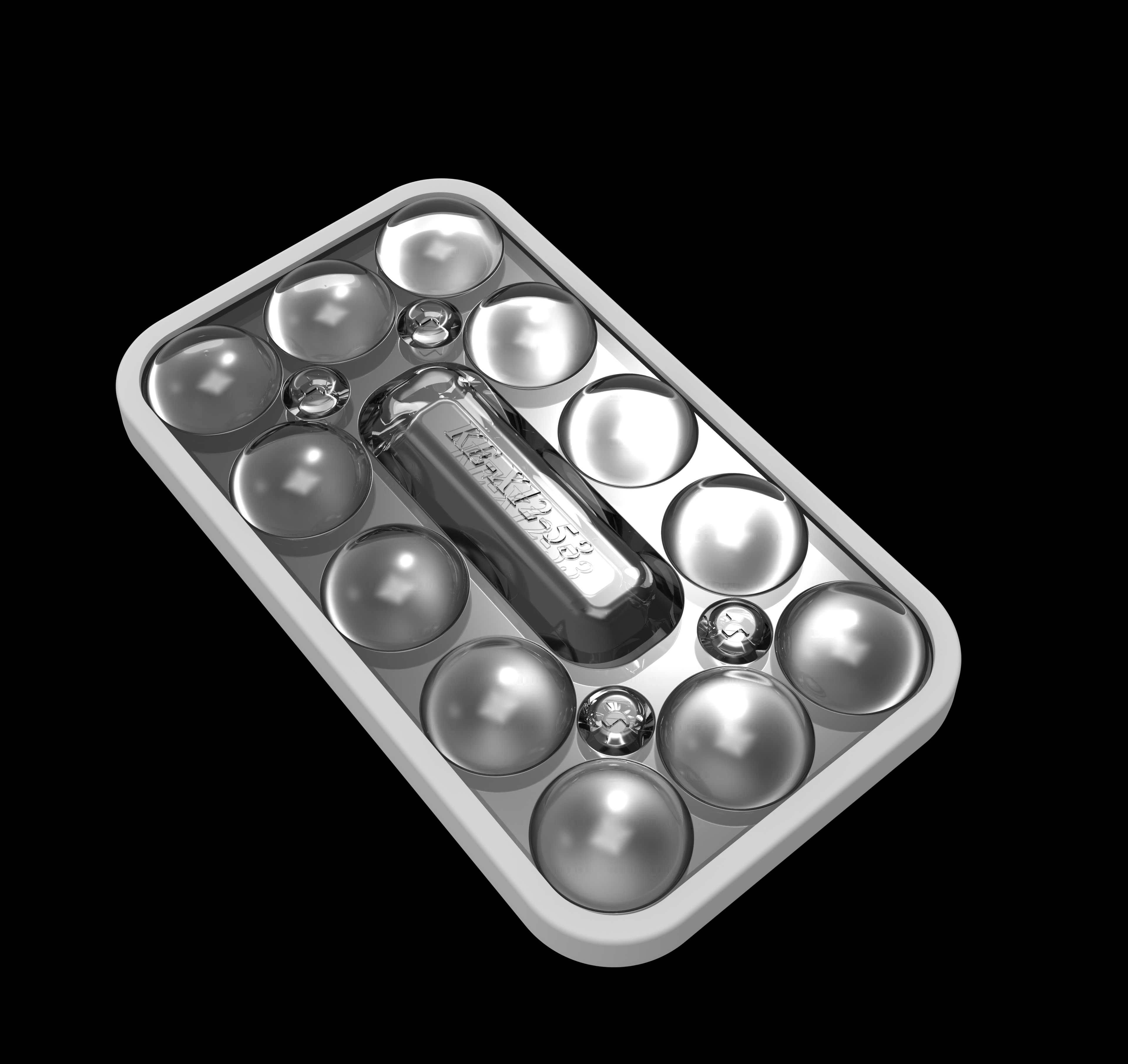

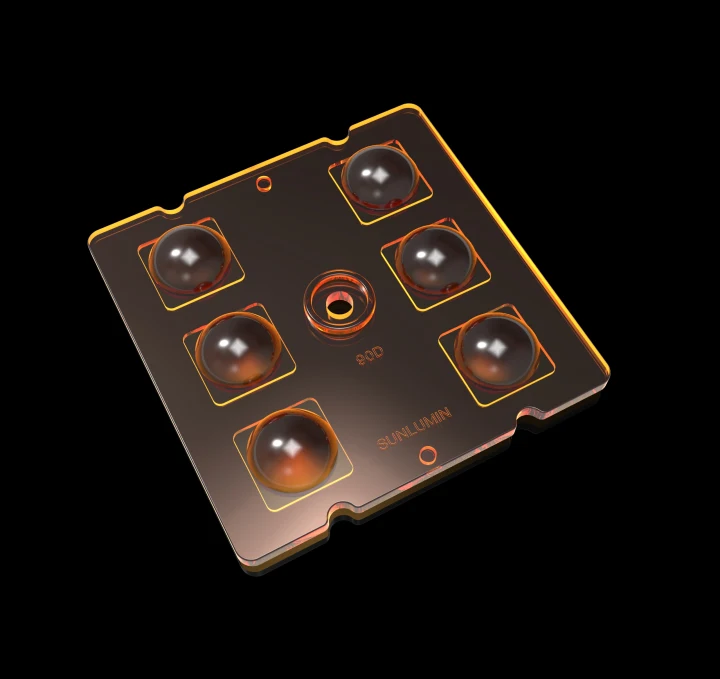

Amber lens can eliminate a large amount of blue light. 2X6 arrays for 5050 size LED packages.
Single lens to be used as TIR only (Ø35 mm) or assembled in holder (Ø37mm).
SHOEBOX
280×10mm linear lens, optimized for SMD2835/3030 LED package
BOHR series lens enables to illuminate windows and doors
Ø21.2 mm TIR-lenses compatible with up to 5050 size LED packages.Assembly with holder

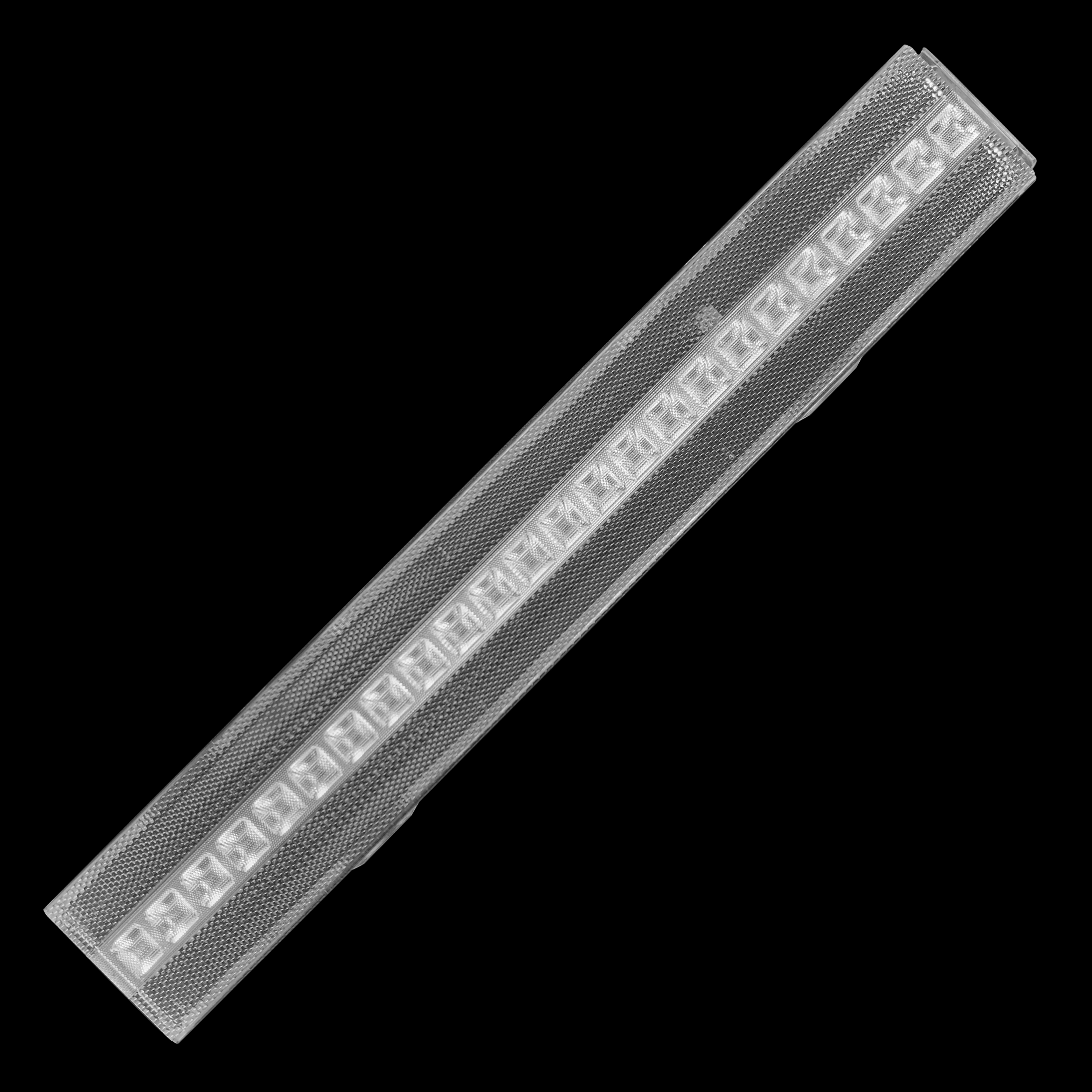

280×43mm linear lens, optimized for SMD2835/3030 lED package. Compatible with 24mm wide ZHAGA PCB.

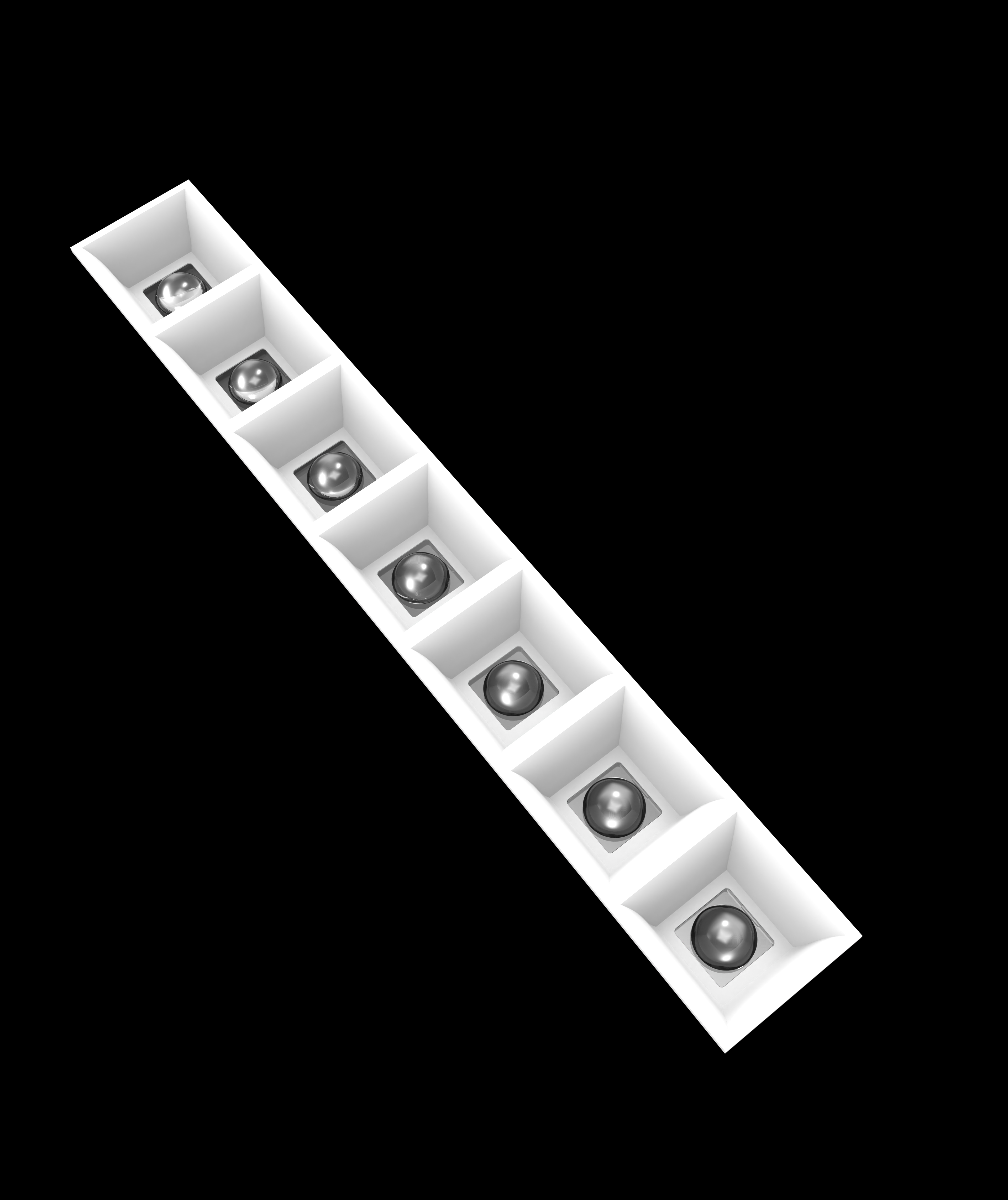

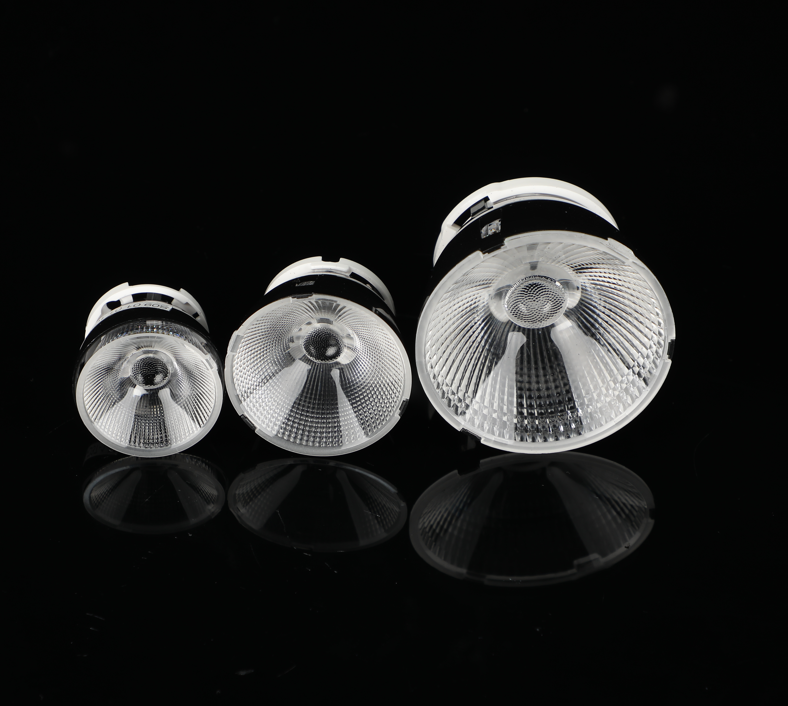

Dalton is a series of lenses with a deep concave surface structure to achieve the ultimate anti-glare effect, mainly optimized for high requirement of anti-glare scene: track lighting, ceiling lighting, spot lighting, outdoor flood lighting etc.
280×15mm linear lens, optimized for SMD2835/3030 LED package
Silicone lenses designed for sports field, area and canopy lighting
Ø22 mm solution .Easily sealable miniature optics for outdoor lighting
Single lens to be used as TIR only (Ø12 mm) or assembled in holder (Ø13.2mm).
236 x 70 mm modular solutions.
IESNA Type II Medium Cut off modular solutions

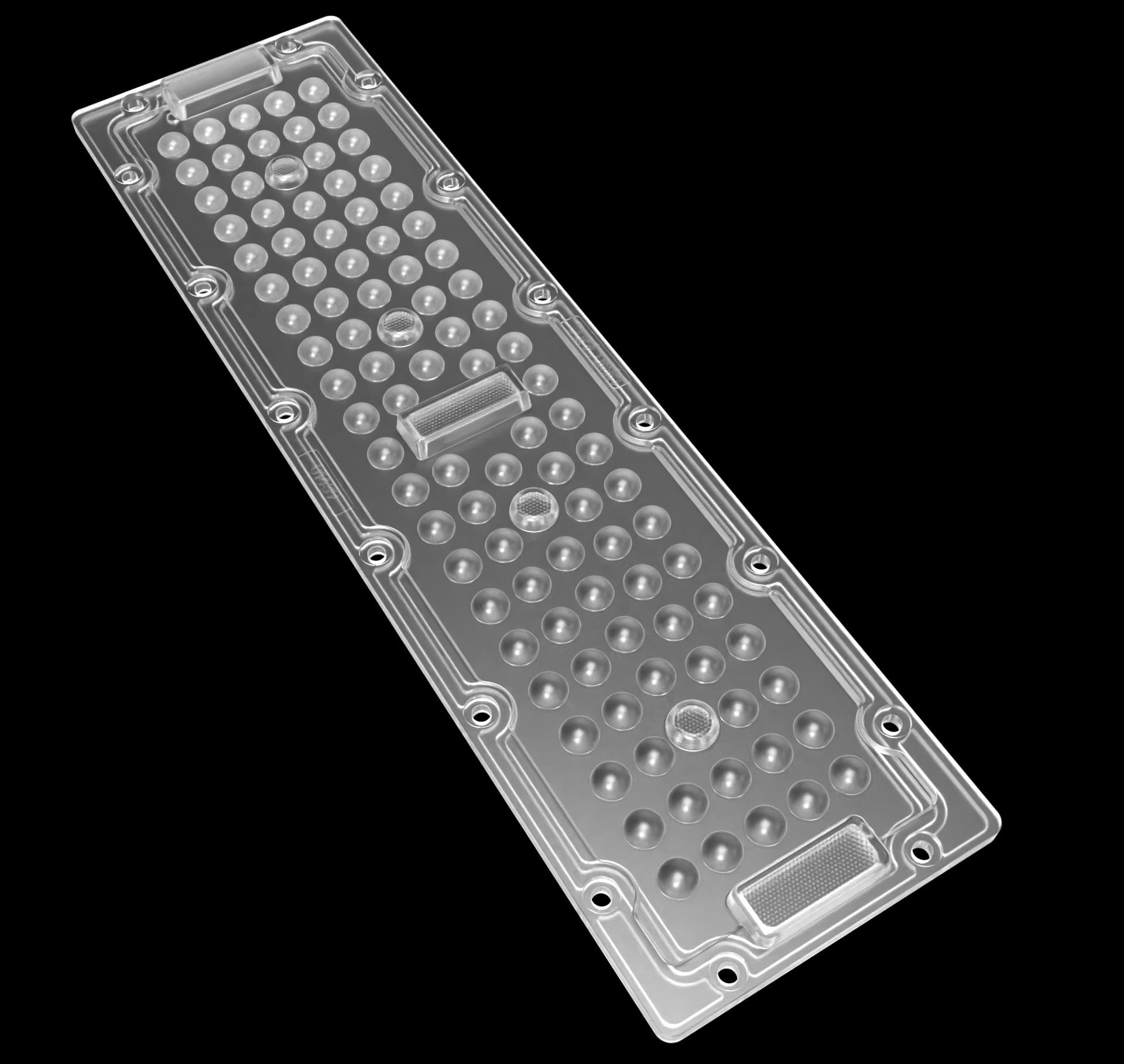

173 x 71.4 mm modular solutions. The most versatile modular product family especially designed for street lighting, but also suitable for wide range of other applications. The standardized modules are available in 2X6 and 4X6 layouts. 3x8 arrays variant with beam direction rotated 90°
256X78mm modular solutions
520X116mm modular solutions.The most versatile modular product family especially designed for sports outdoor lightinging and high mast lighting
Small spoting light series, extremely high K value, uniform spot without stray light
Ø13.51mm TIR-lenses,assembled with holder (Ø15.2mm) .Optimized for3535 Mid-Power or High-Power LED packages,compatible with 3030 size LED packages.
Ø22mm TIR-lenses, DIA D16, D22
Single lens to be used as TIR only (Ø50 mm) or assembled in holder (Ø52.5mm)
Cutoff light track lamp lighting series
Suitable for wall washing
Optimized for back light lens series
16×16mm solution .Easily sealable miniature optics for outdoor lighting. The economical version of the HERTZ series.
Yard light
285×62mm 3-row (3×11) linear lenses,optimized for 3030 size LED package. Compatible with ZHAGA 3R PCB.
Single glass lenses
Φ14.9mm integrated single lens ,optimized for midpower 3030 size LED package.
50 x 50 mm modular solutions.The most versatile modular product family especially designed for street and area lighting, but also suitable for wide range of other applications
Ø28.9 mm single lens, Ø31 mm with holder. Designed based on CREE XPE 3535 LED, compatible with 3030 and CREE JR5050 and Batwing package by different holder.

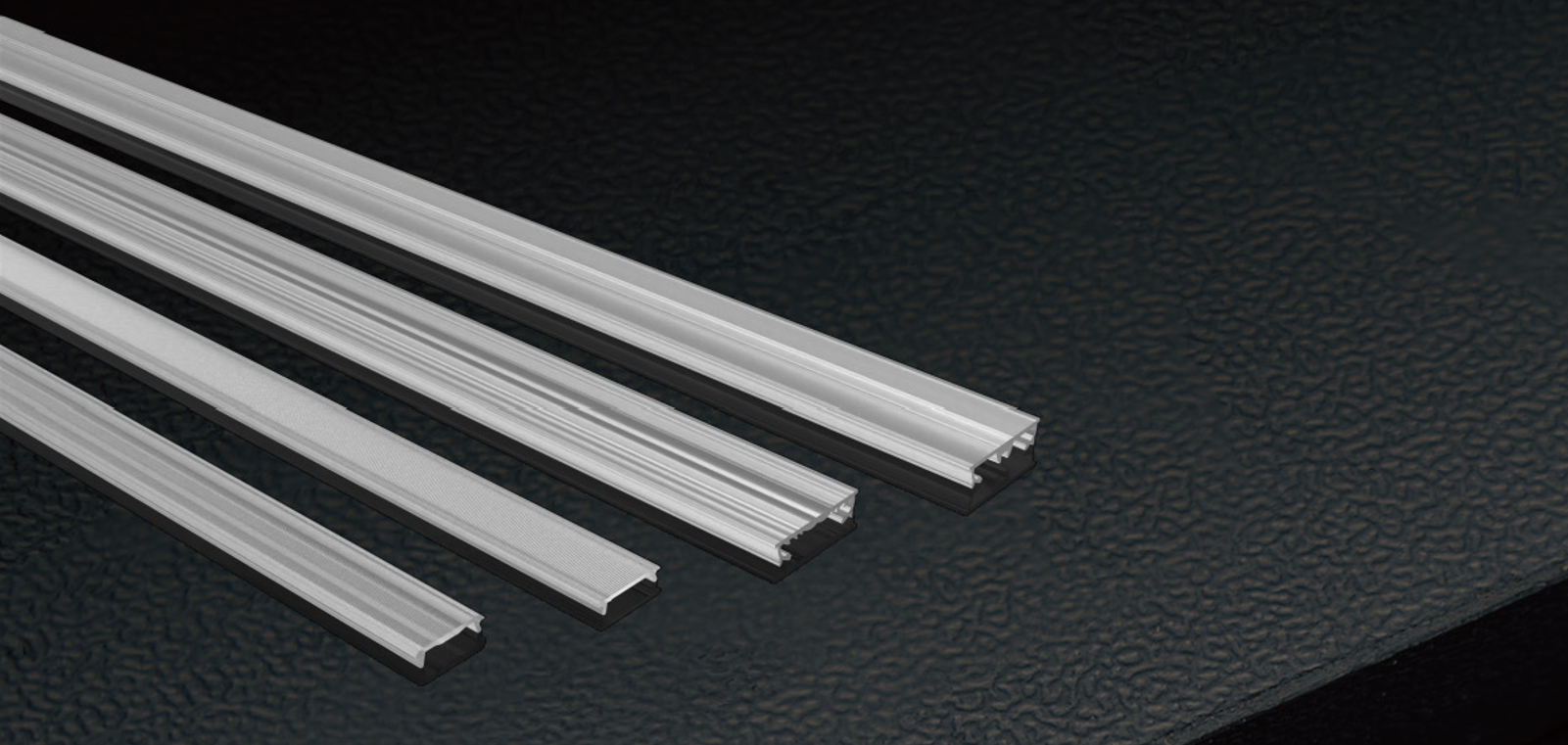

OERSTED is a linear extrusion lenses family.The optics are made of diffused PMMA for high optical efficiency with good LED source hiding power. OERSTED can be customized for luminaires for different lengths
RGBW
Waterproof module for streetlight ,compatible with up to 3030size mid-power LED packages.
SPORT
135X100mm modular solutions.TESLA family is a high efficient IP66 module lens with dense arrays for street, area, industrial lighting.

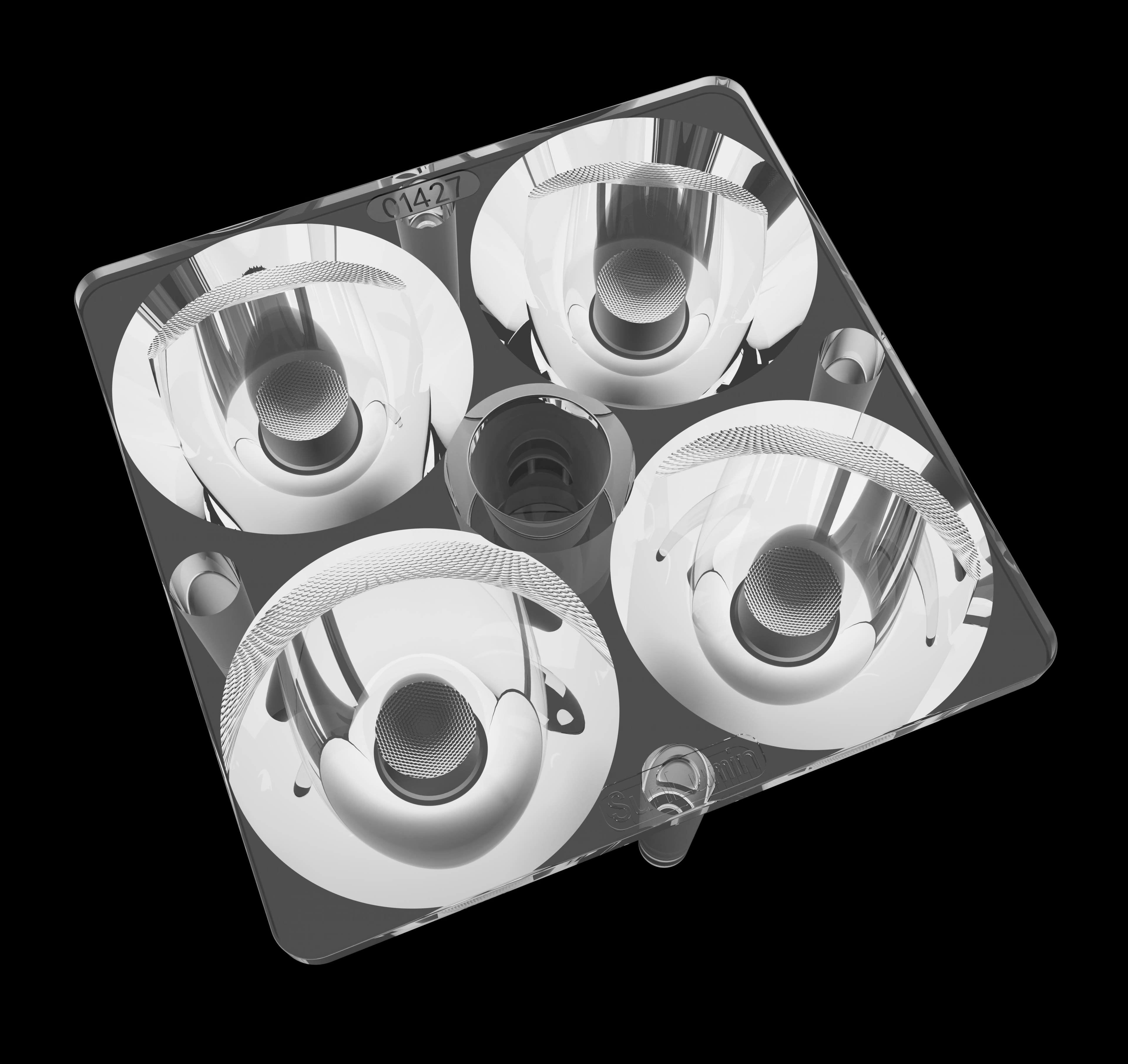

THOMSON is a perfect solution with a seamless glare eliminating shade and highly efficient lenses, optimized for 4*3030/4*2835 size LED packages.
UFO C SERIES

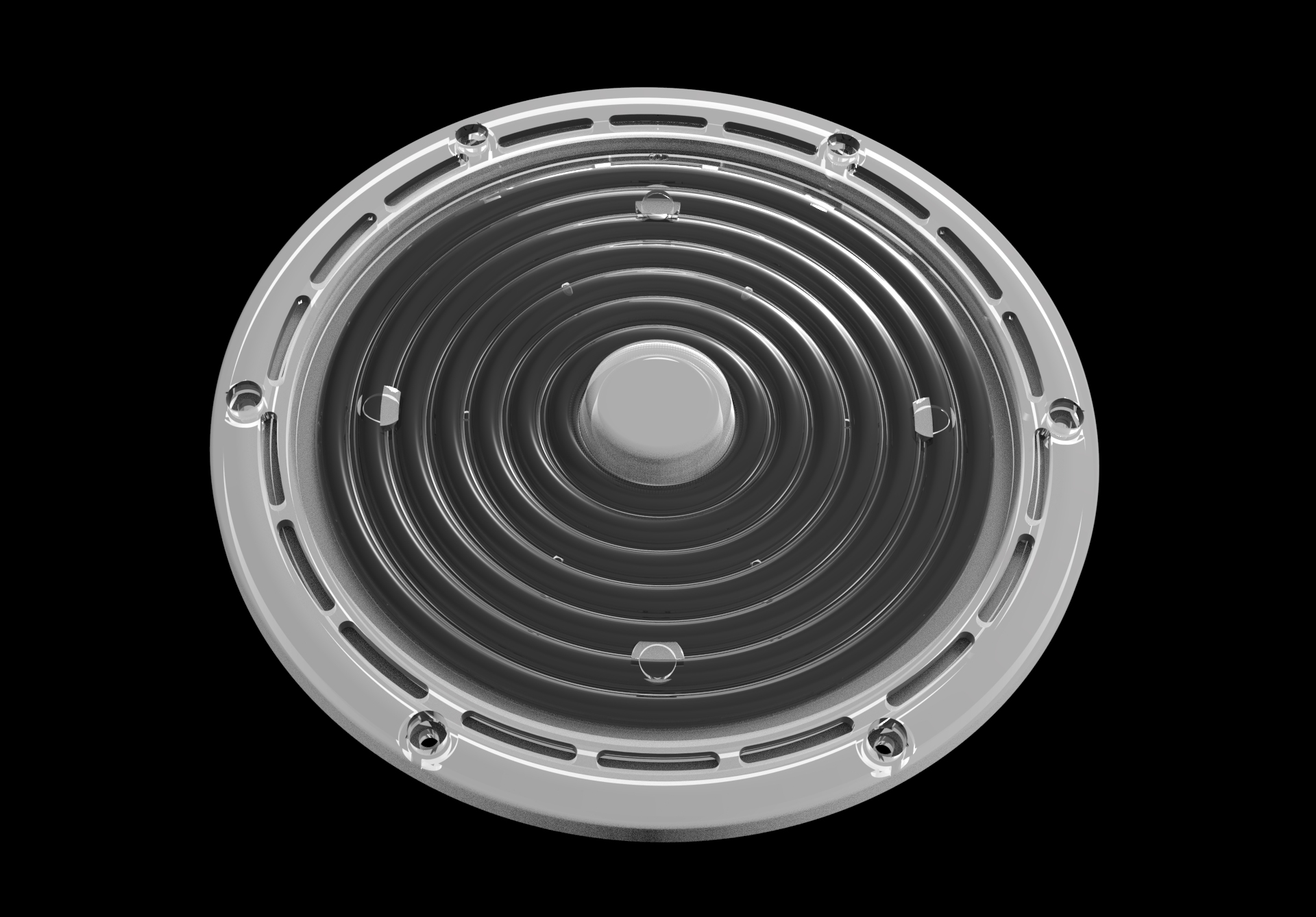

UFO H SERIES
UFO N SERIES
Cutoff light Down lighting & wall washing series
YOUYOU-G2
Glass multi-lens arrays
