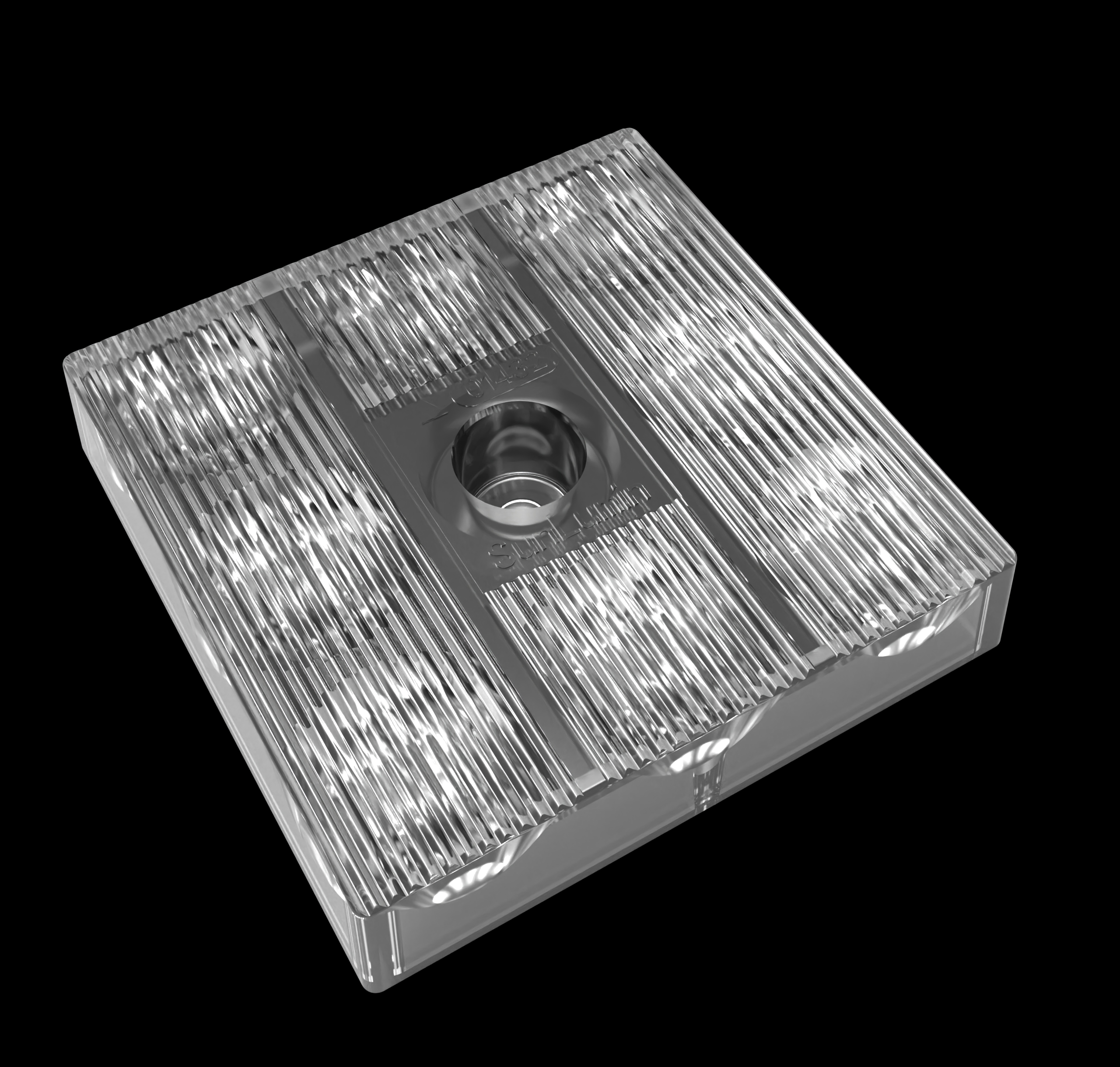

MAXWELL-8

50 x 50 mm 8 lens (3+2+3) arrays for up to flat 5050 size LED packages. The position of LED meet the EU ZHAGA standard

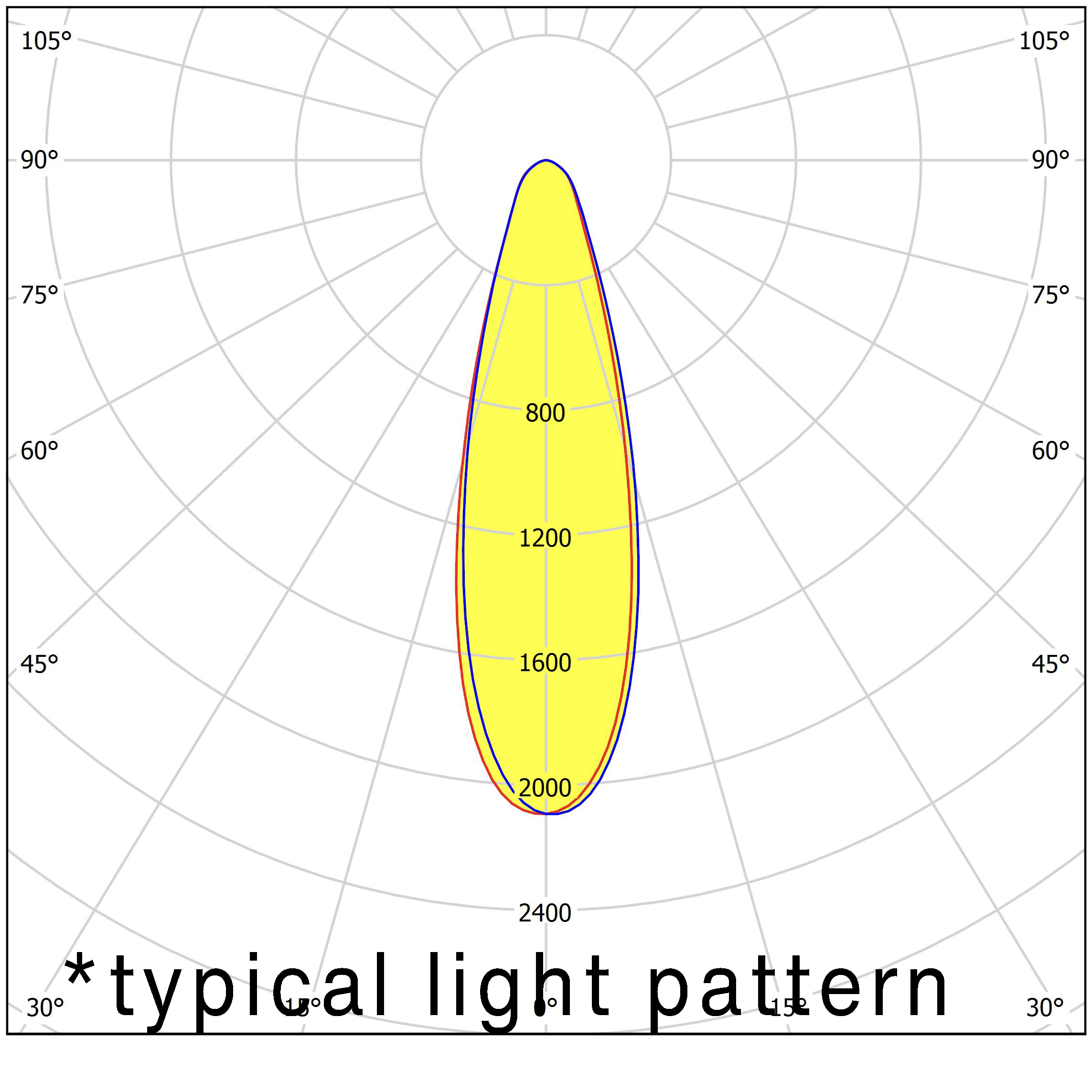

S01.01.01.362_MAXWELL-8-30

30° （Medium）beam. MAXWELL-8 SERIES, 50 x 50 mm 8 lens (3+2+3) arrays for up to flat 5050 size LED packages. The position of LED meet the EU ZHAGA standard.

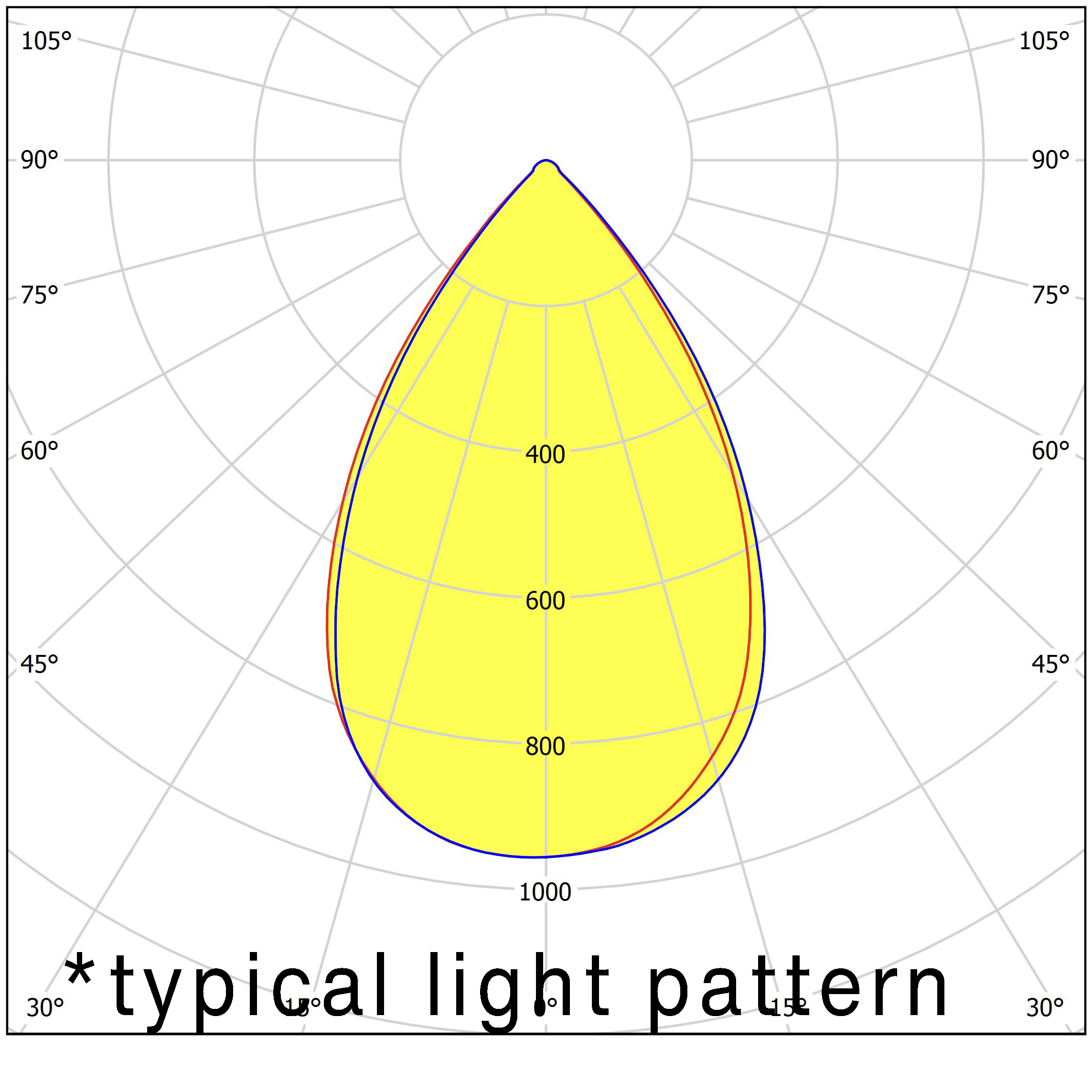

S01.01.01.363_MAXWELL-8-60

60° (wide) beam. Good uniformity of light spot. 50 x50 mm. 2x3+2 arrays for 5050 size LED packages.

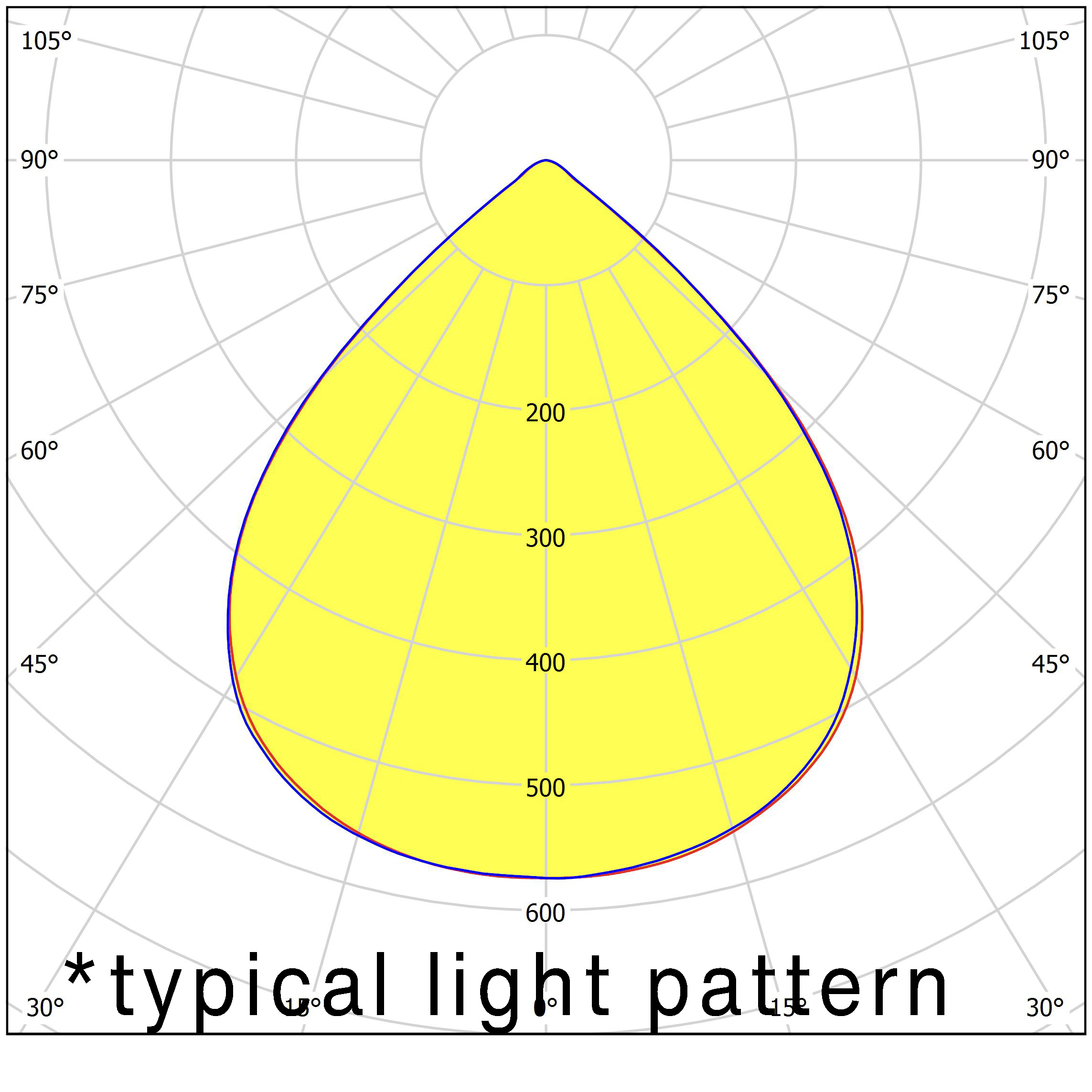

S01.01.01.364_MAXWELL-8-90

90°( Extra wide)beam. Good uniformity of light spot. 50 x50 mm. 2x3+2 arrays for 5050 size LED packages.

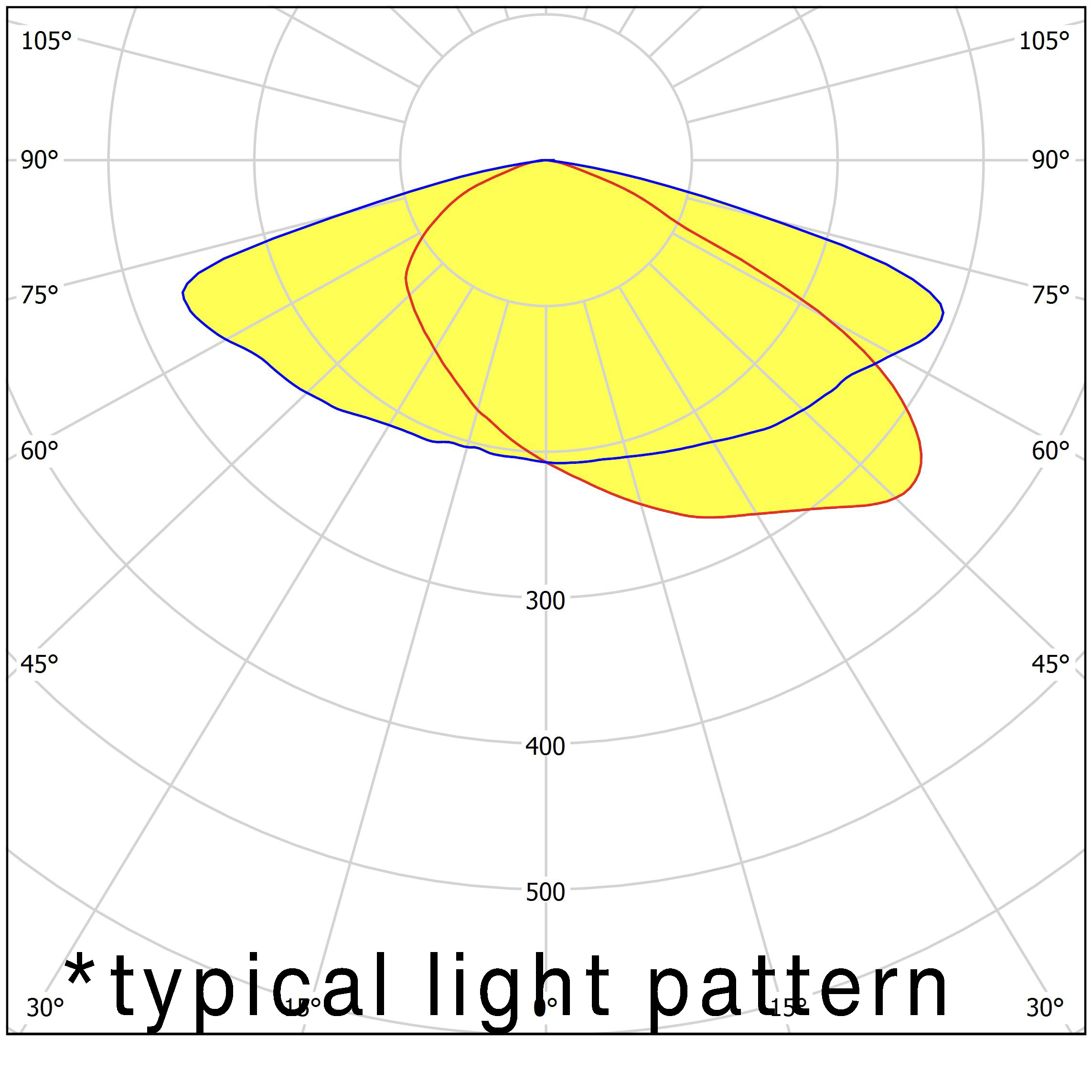

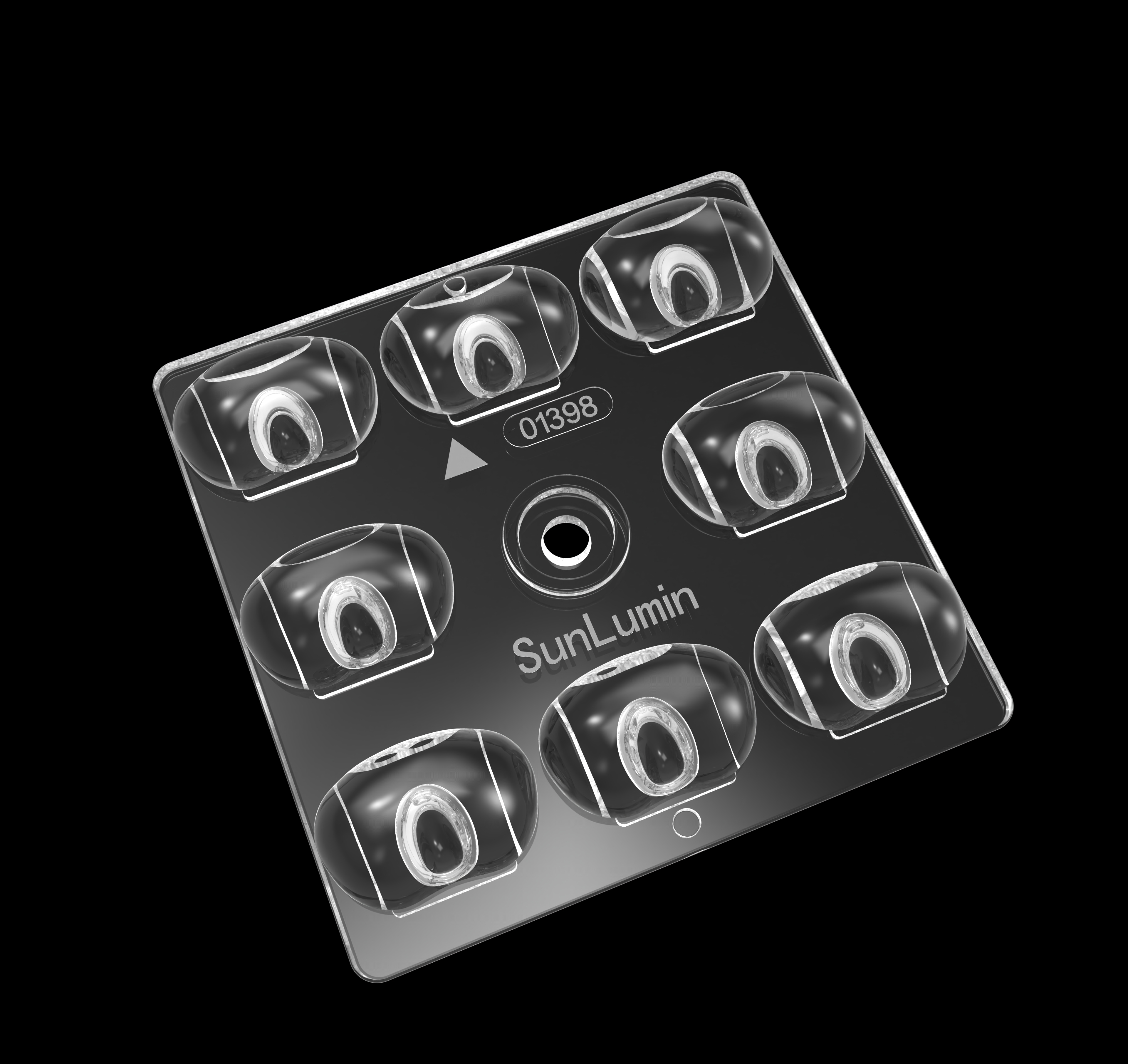

S01.01.01.398_MAXWELL-8-T3M-CB

lESNA Type lll (medium) beam,. Good uniformity of light spot. 50x50 mm. 2x3+2 arrays for 5050 size LED packages.

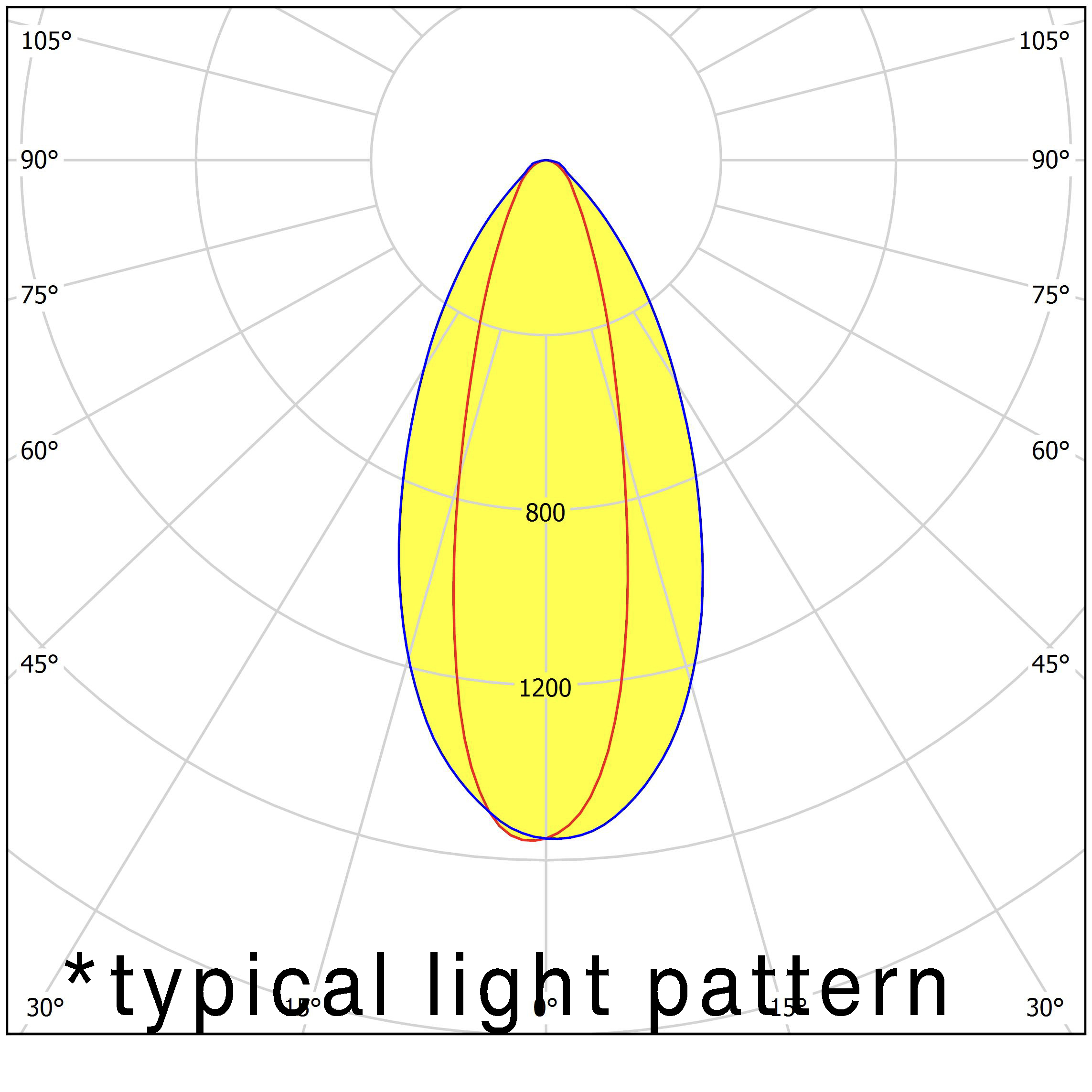

S01.01.01.429_MAXWELL-8-30X48

IESNA 30x48 beam MAXWELL-8 SERIES,50 x50 mm 8 lens (3+2+3)arrays for up to flat5050 size LED packages. The position of LED meet the EU ZHAGAstandard.

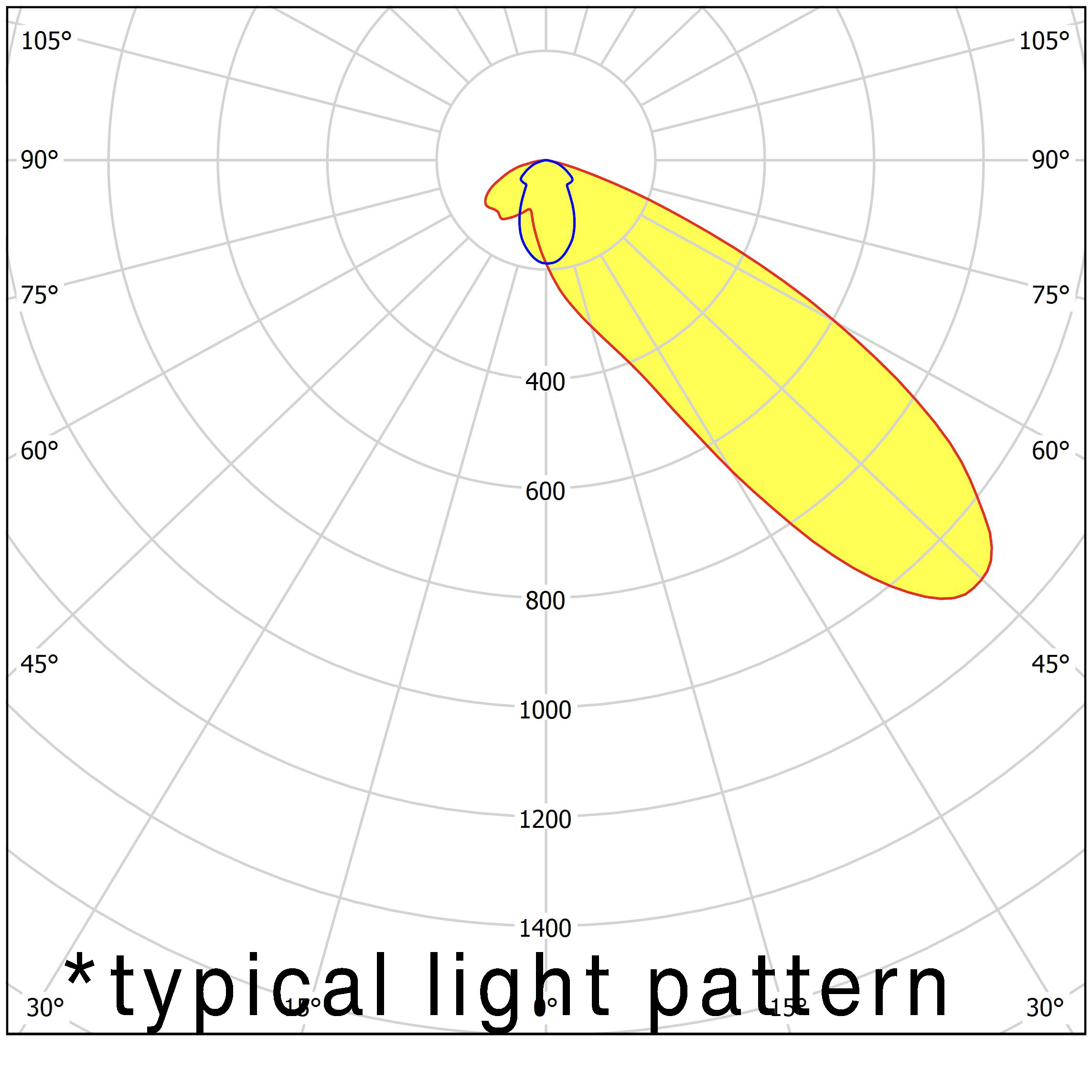

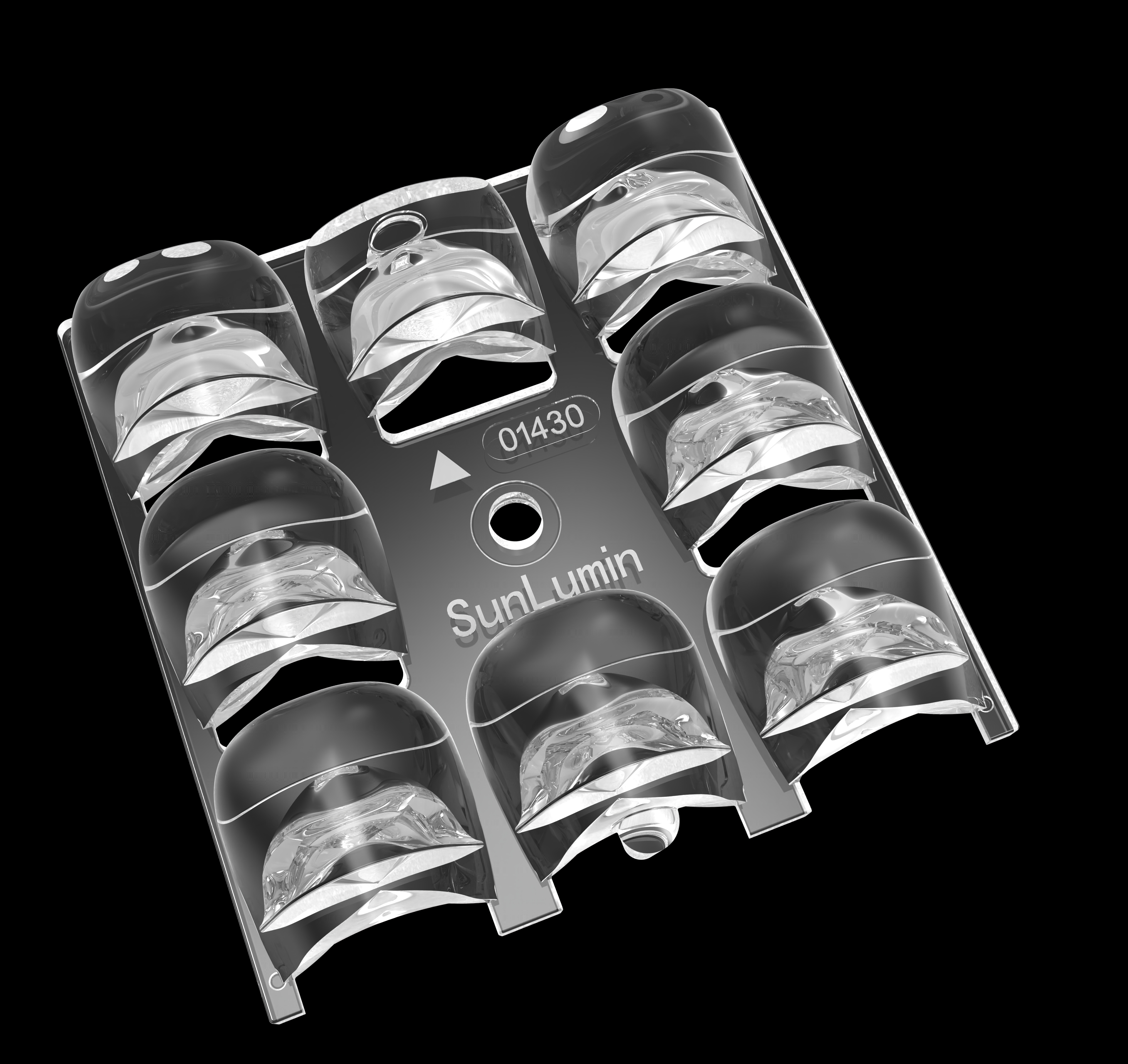

S01.01.01.430_MAXWELL-8-A50

~50°Asymmetric beam. MAXWELL-8 SERIES, 50 x 50 mm ，2x3+2 arrays for 5050 size LED packages. Narrow forward throw beam for high masts.

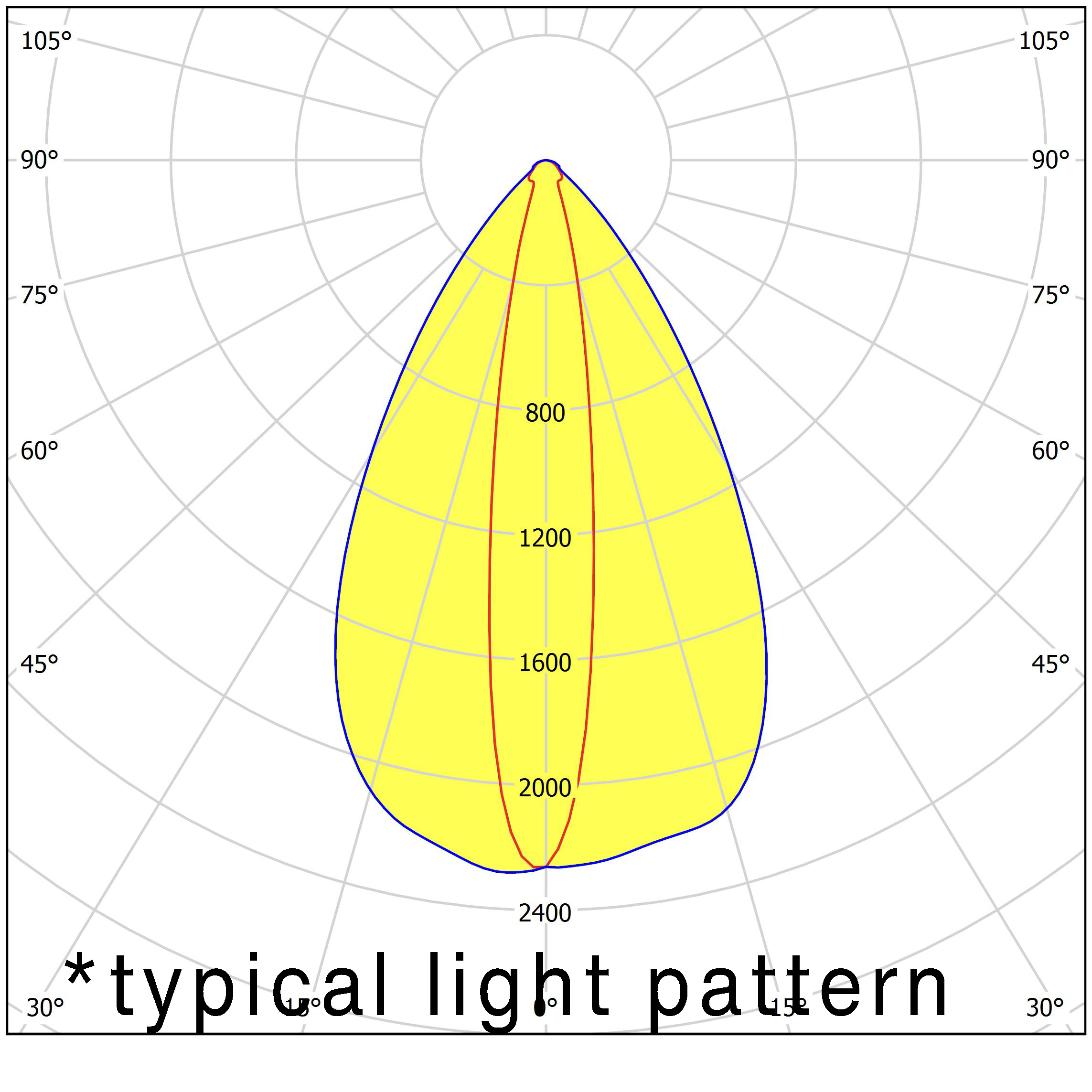

S01.01.01.432_MAXWELL-8-15X60

IESNA15x60 beam MAXWELL-8 SERIES,50 x50 mm 8 lens(3+2+3)arrays for up to flat5050 size LED packages. The position of LED meet the EU ZHAGAstandard.

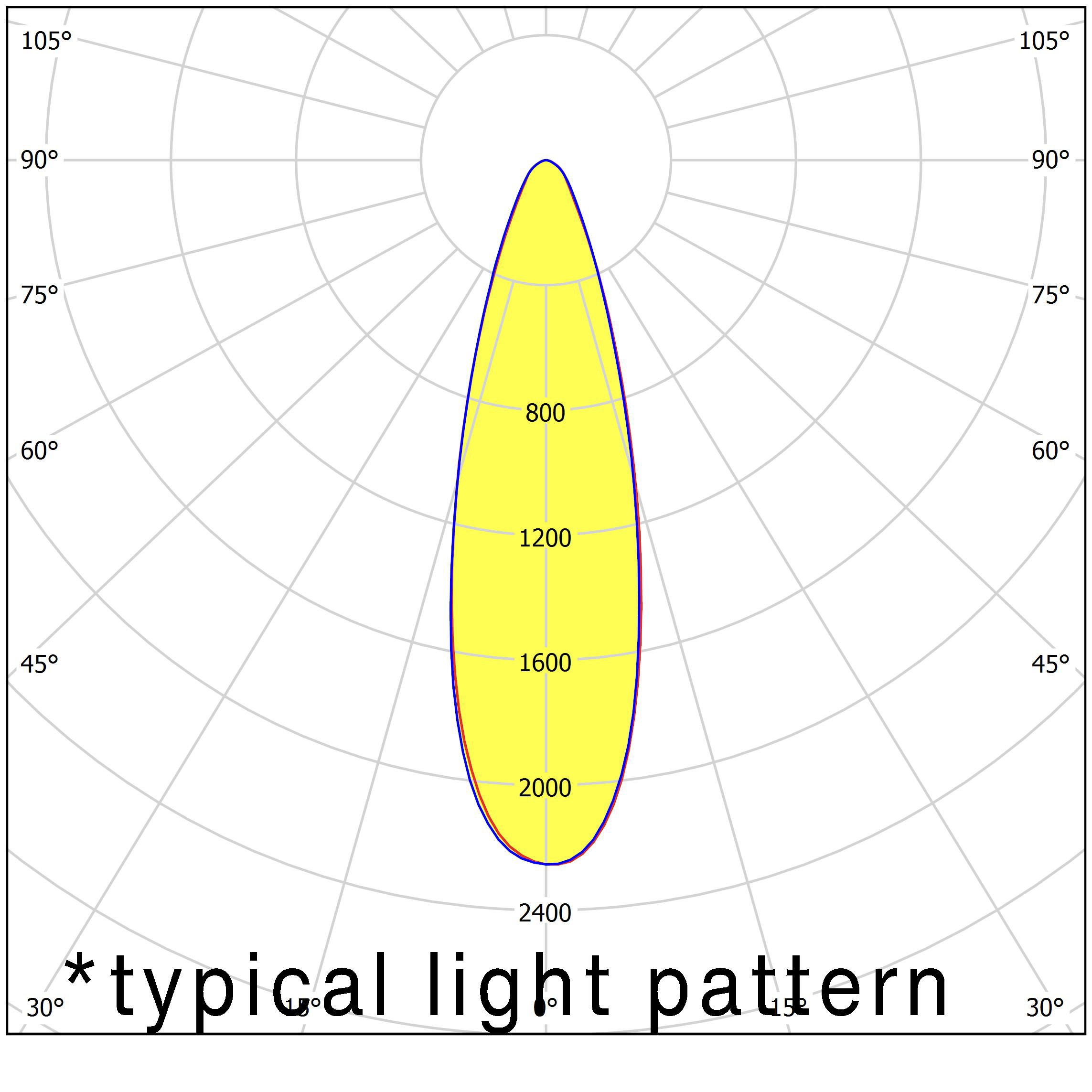

S01.01.02.336_MAXWELL-8-30

30°(Medium) beam 50 x 50 mm.2x3+2 arrays for 5050 size LED packages.

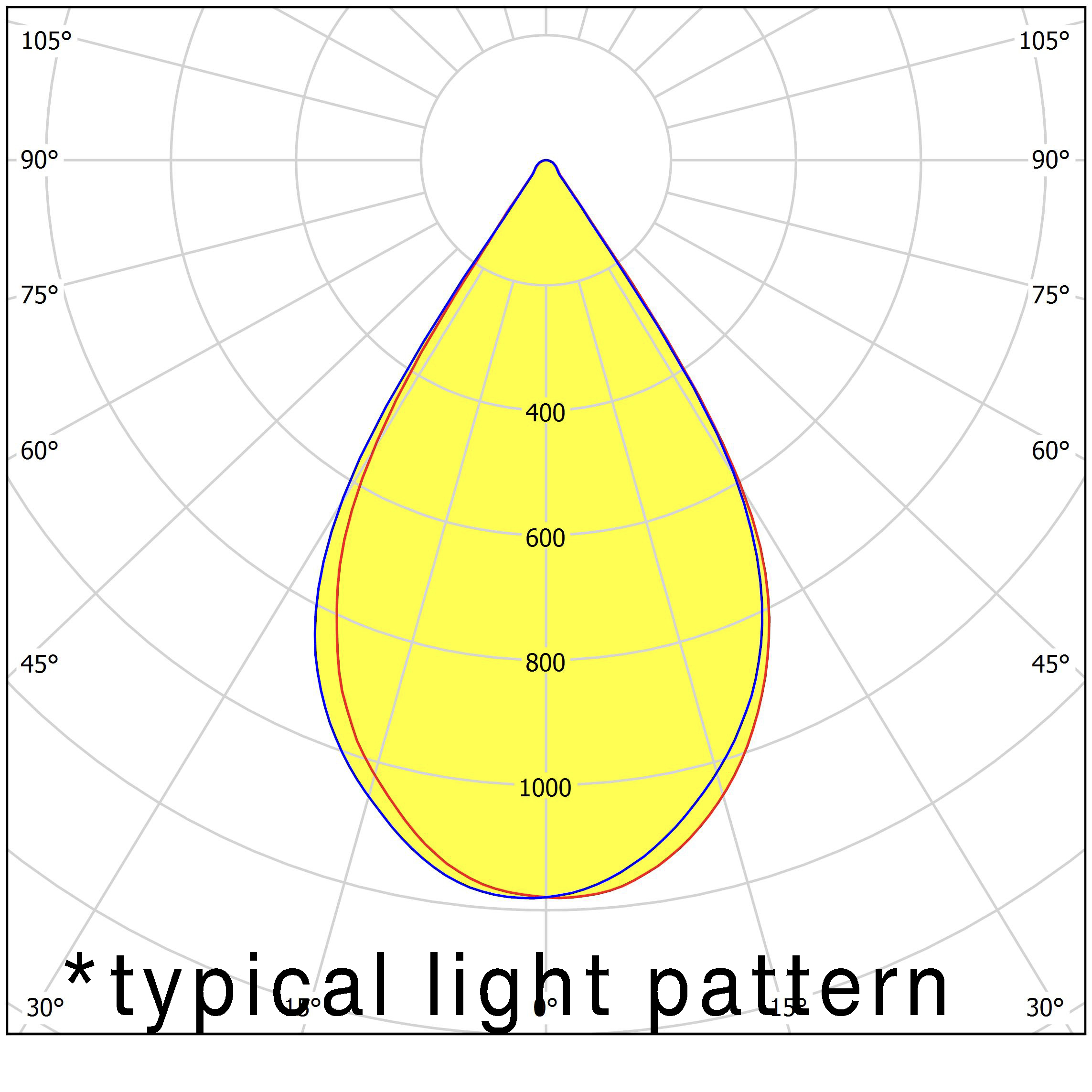

S01.01.02.337_MAXWELL-8-60

60°(Wide) beam 50 x 50 mm.2x3+2 arrays for 5050 size LED packages.

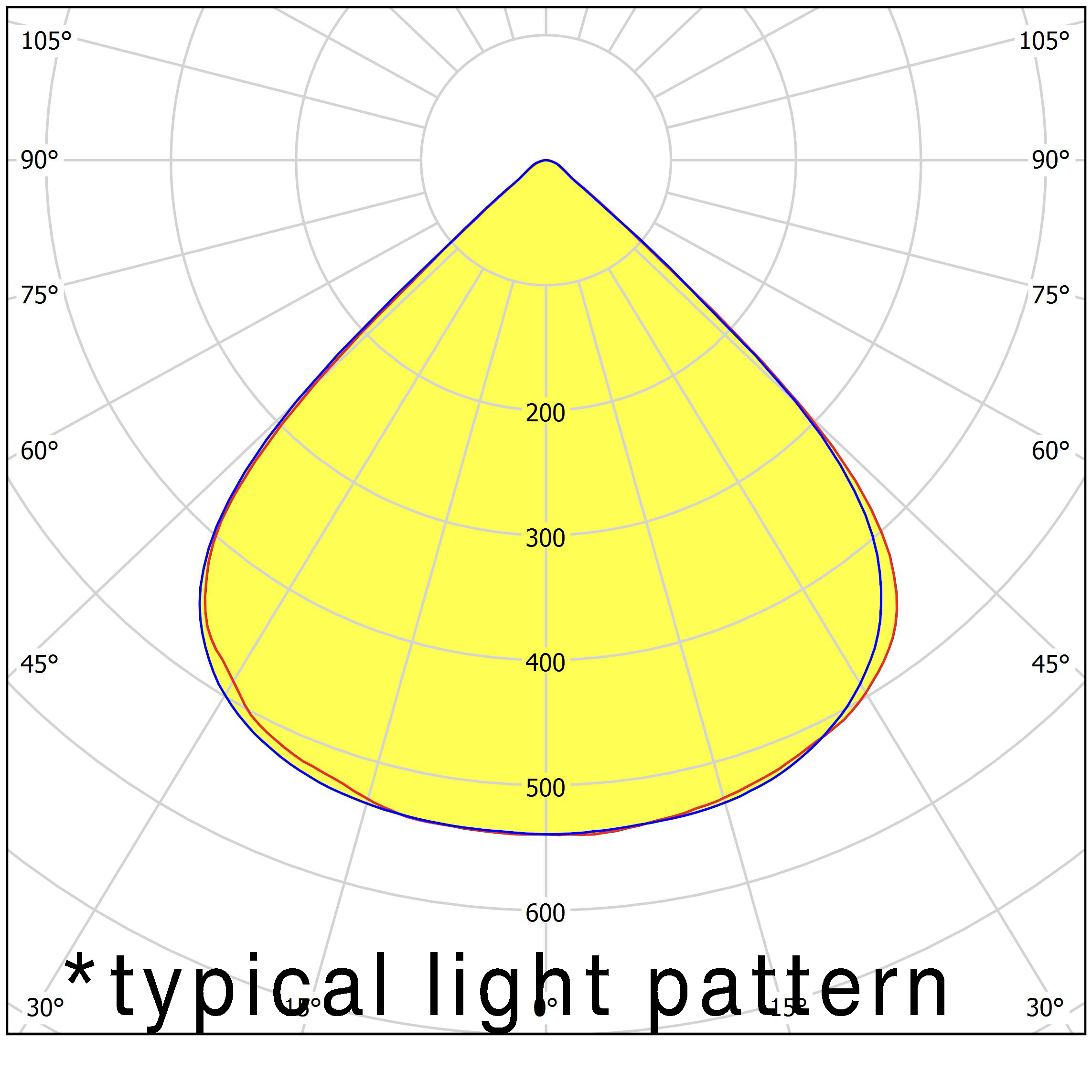

S01.01.02.338_MAXWELL-8-90

90°(Extra Wide) beam 50 x 50 mm.2x3+2 arrays for 5050 size LED packages.

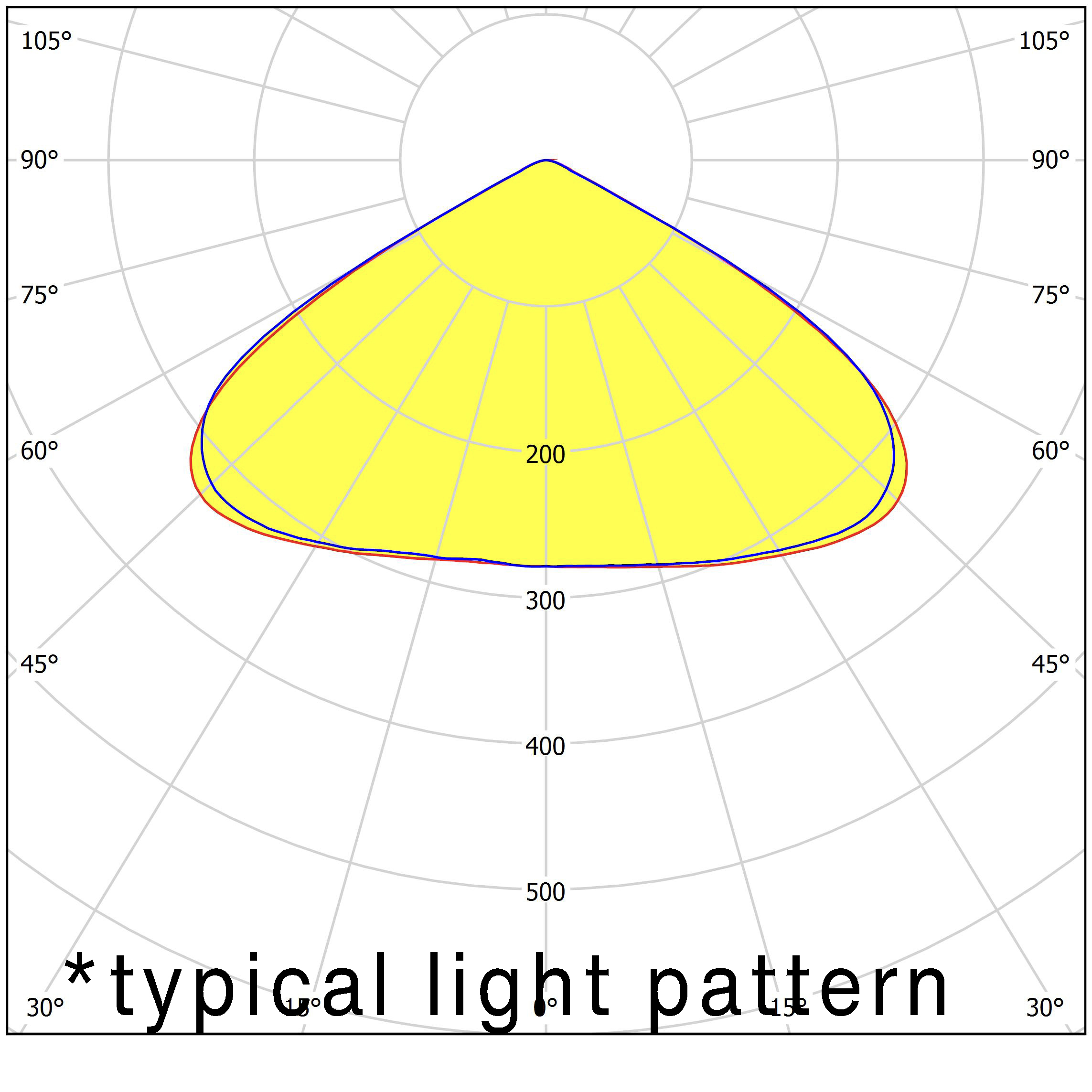

S01.01.02.339_MAXWELL-8-120B

120° (Ultra Wide) beam. 50 x 50 mm. 2x3+2 arrays for 5050 size LED packages.

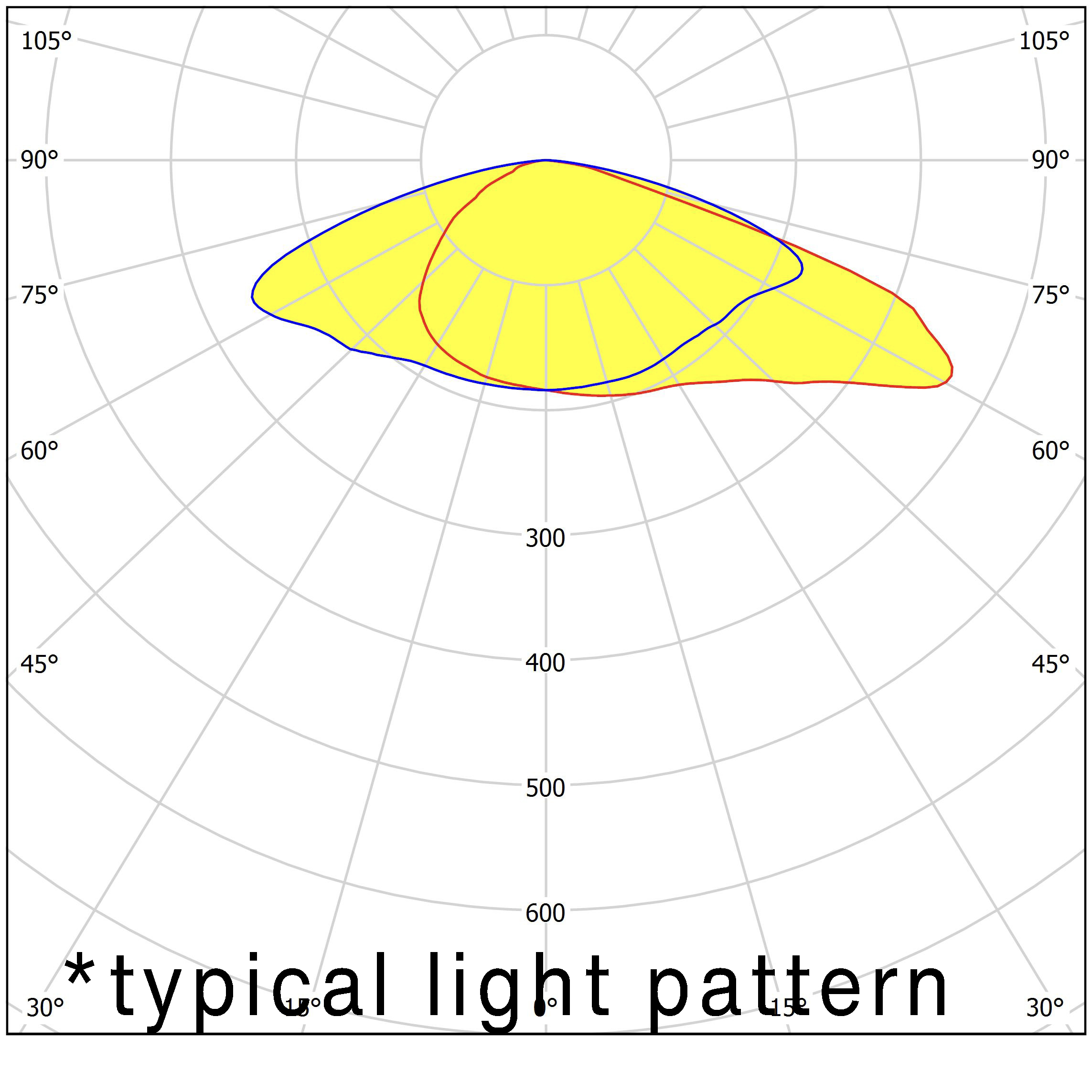

S01.01.02.354_MAXWELL-8-T4

Wide IESNA Type IV forward-throw beam for wide area lighting like car parks. Fulfilling EN 13201 C-class requirements.

S01.01.02.359_MAXWELL-8-T2S-CC

IESNA Type II Short (cutoff) beam ; Excellent longitudinal luminance uniformity fulfilling EN 13201 M-class requirements and optimized for tilted poles (Design base on tilted angle of 15°, 3 lanes, single-sided lighting arrangement, pole height of 10m, pole distance of 40m. Perfectly Meets EN 13201 M3 class. )

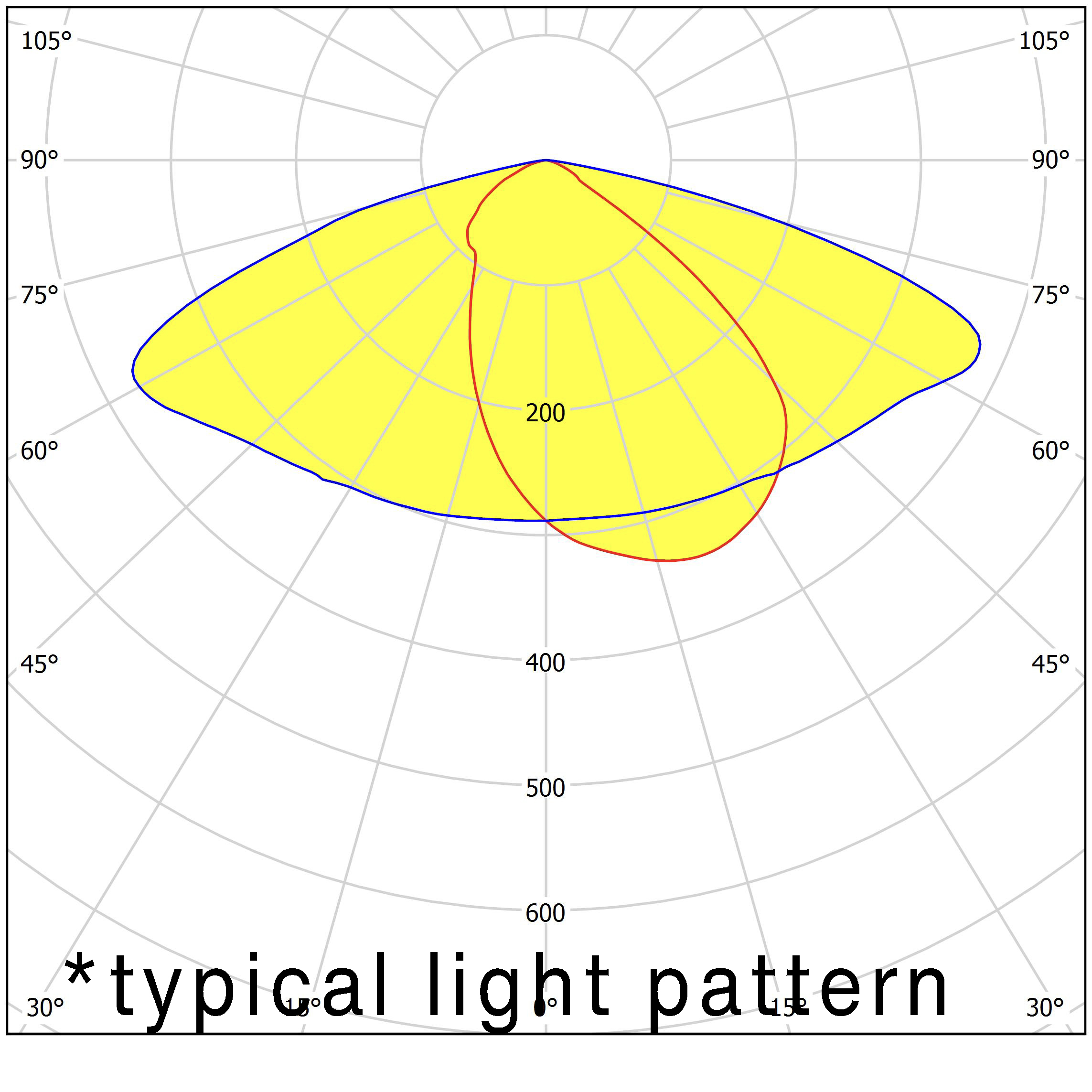

S01.01.02.368_MAXWELL-8-T2

IESNA Type II (cutoff) beam ; Excellent longitudinal luminance uniformity fulfilling EN 13201 M-class requirements and optimized for tilted poles (Design base on tilted angle of 15°, 2X4 lanes, two-sided lighting arrangement, pole height of 12.5m, pole distance of 46-50m. Perfectly Meets EN 13201 M1 class. )

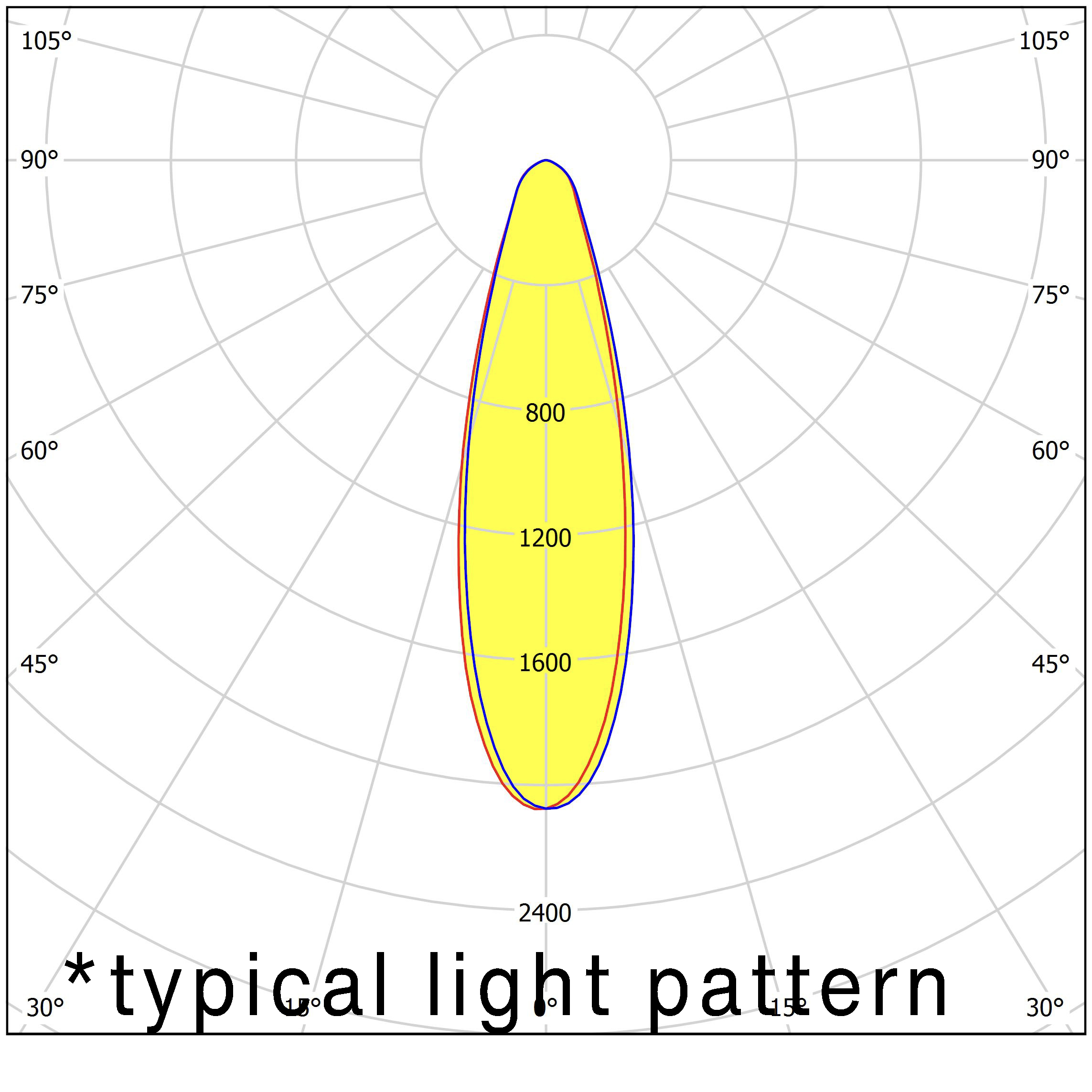

S01.01.02.408_MAXWELL-8-30-HT

30° (Medium) beam . 50 x 50 mm. 2x3+2 arrays for 5050 size LED packages.

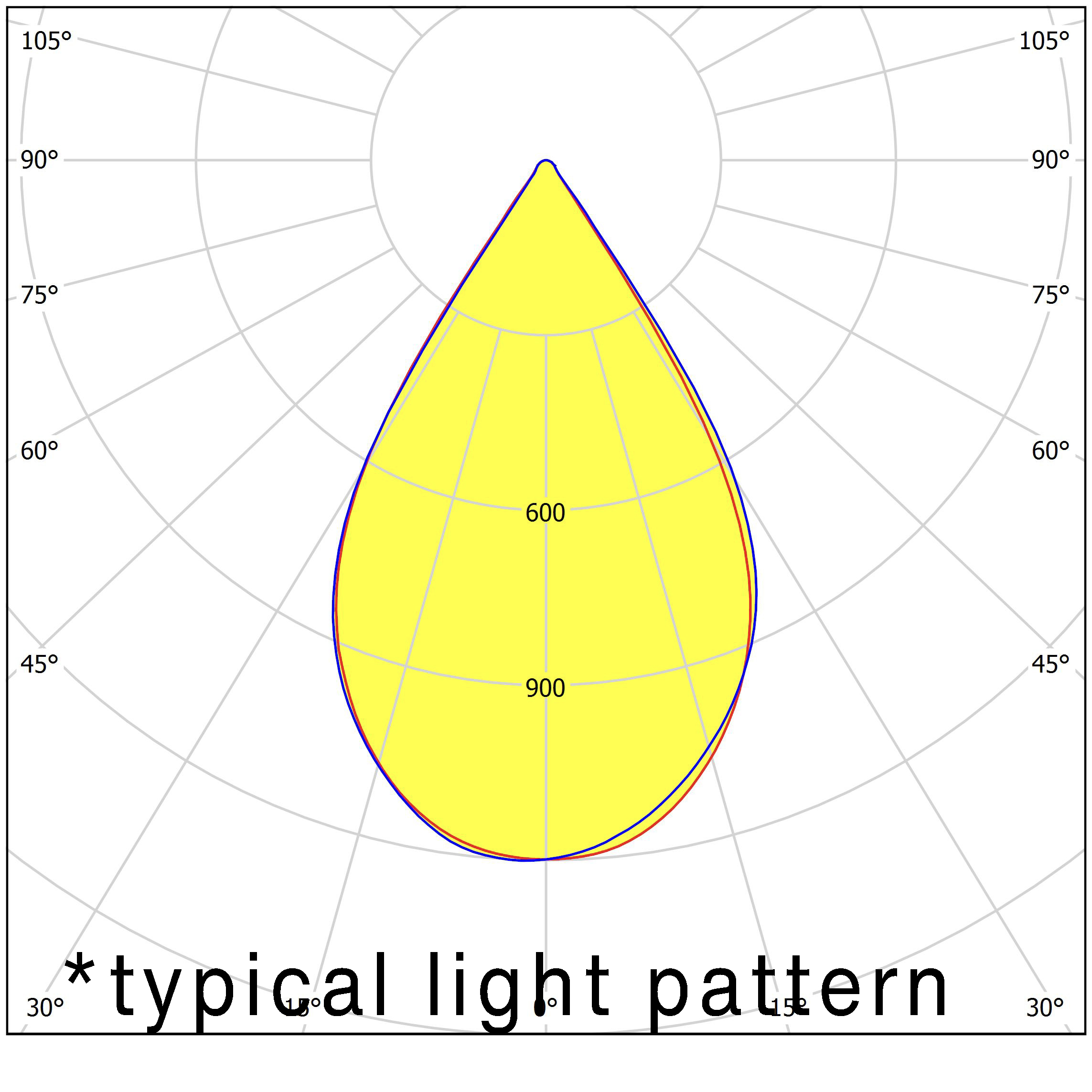

S01.01.02.409_MAXWELL-8-60-HT

60° (Wide) beam . 50 x 50 mm. 2x3+2 arrays for 5050 size LED packages.

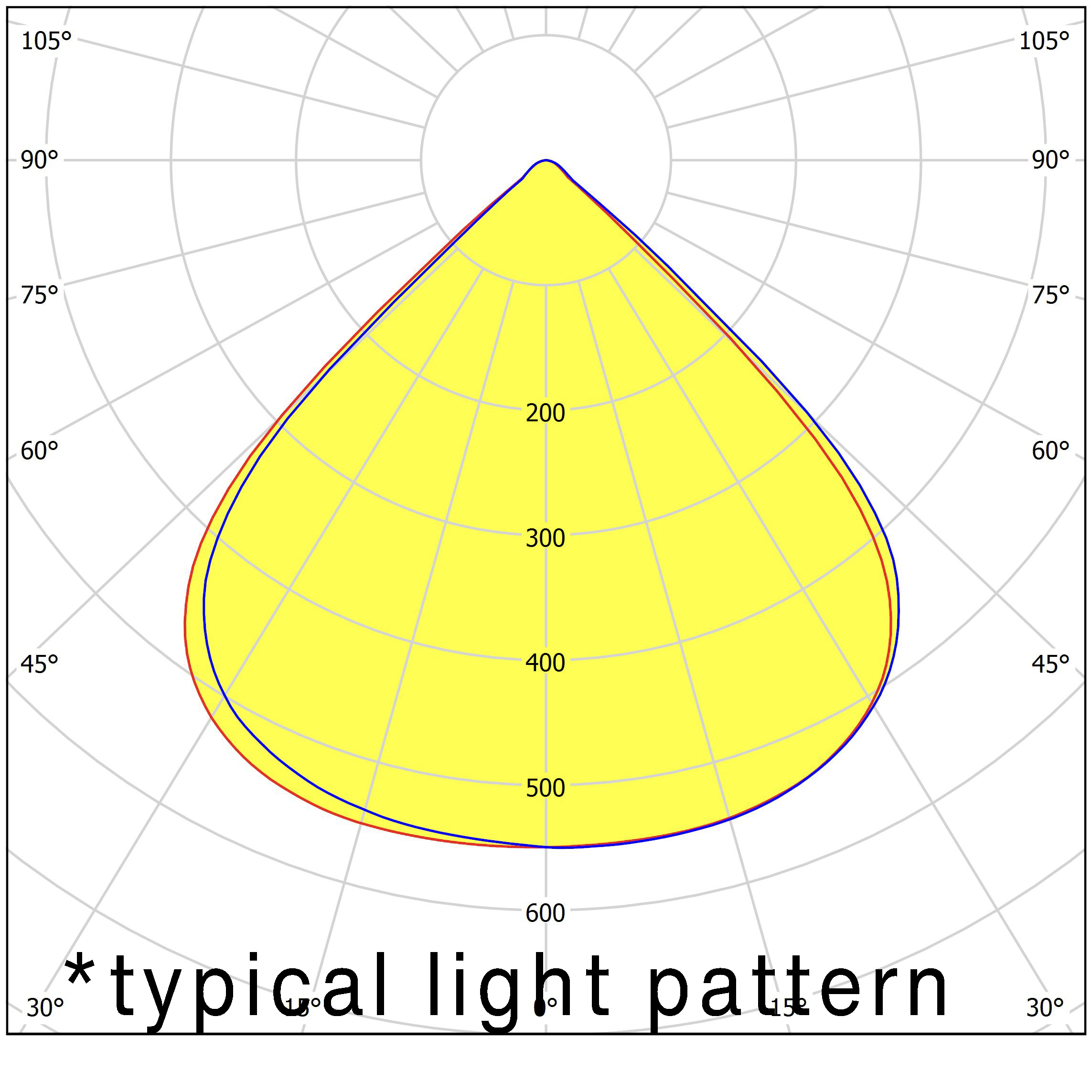

S01.01.02.410_MAXWELL-8-90-HT

90° (Extra Wide) beam . 50 x 50 mm. 2x3+2 arrays for 5050 size LED packages.

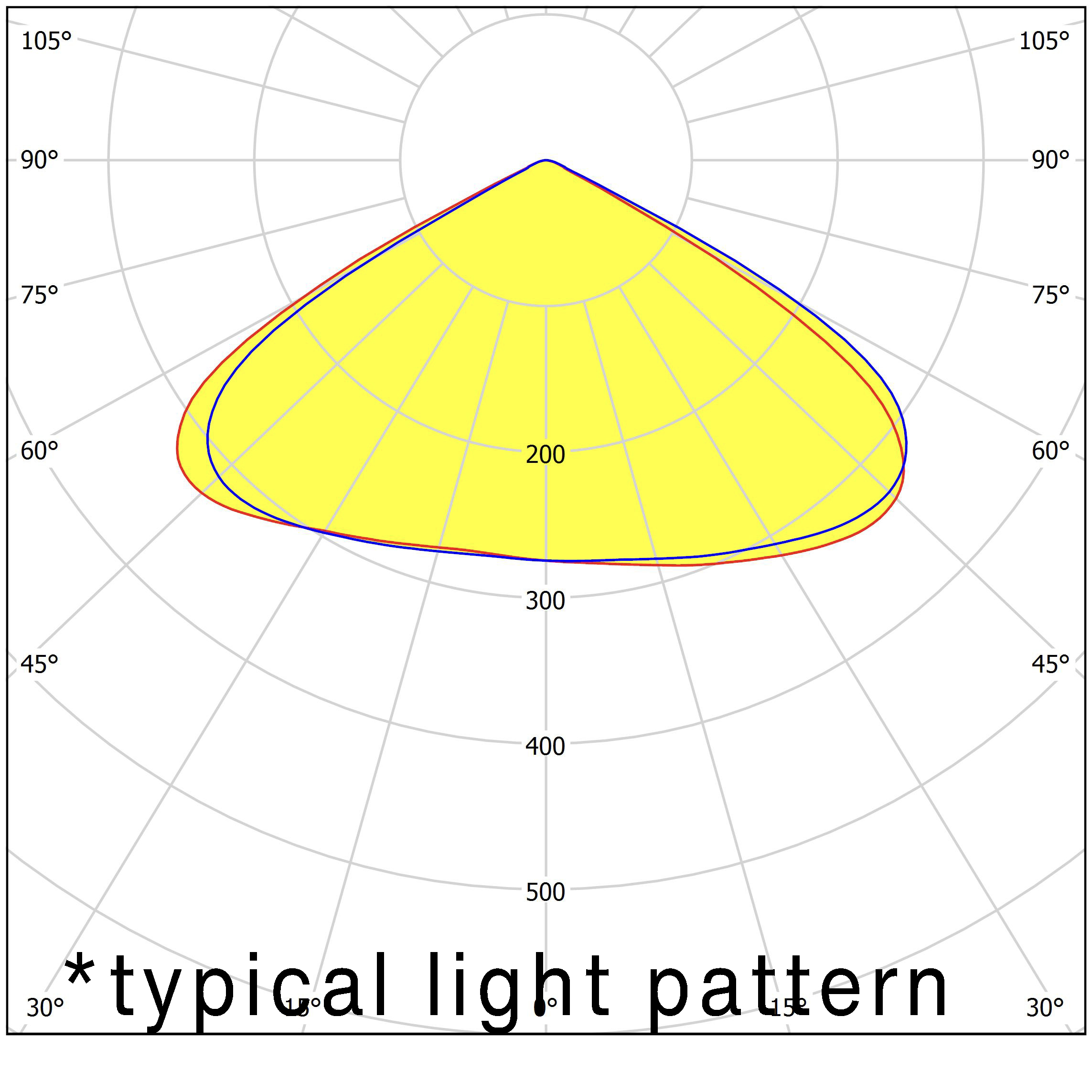

S01.01.02.411_MAXWELL-8-120-HT

~120° Ultra wide beam MAXWELL-8 SERIES,50 x50 mm 8 lens(3+2+3)arrays for up toflat 5050 size LED packages. The position of LED meet the EU ZHAGAstandard. Variant made from High Temperature PMMA.

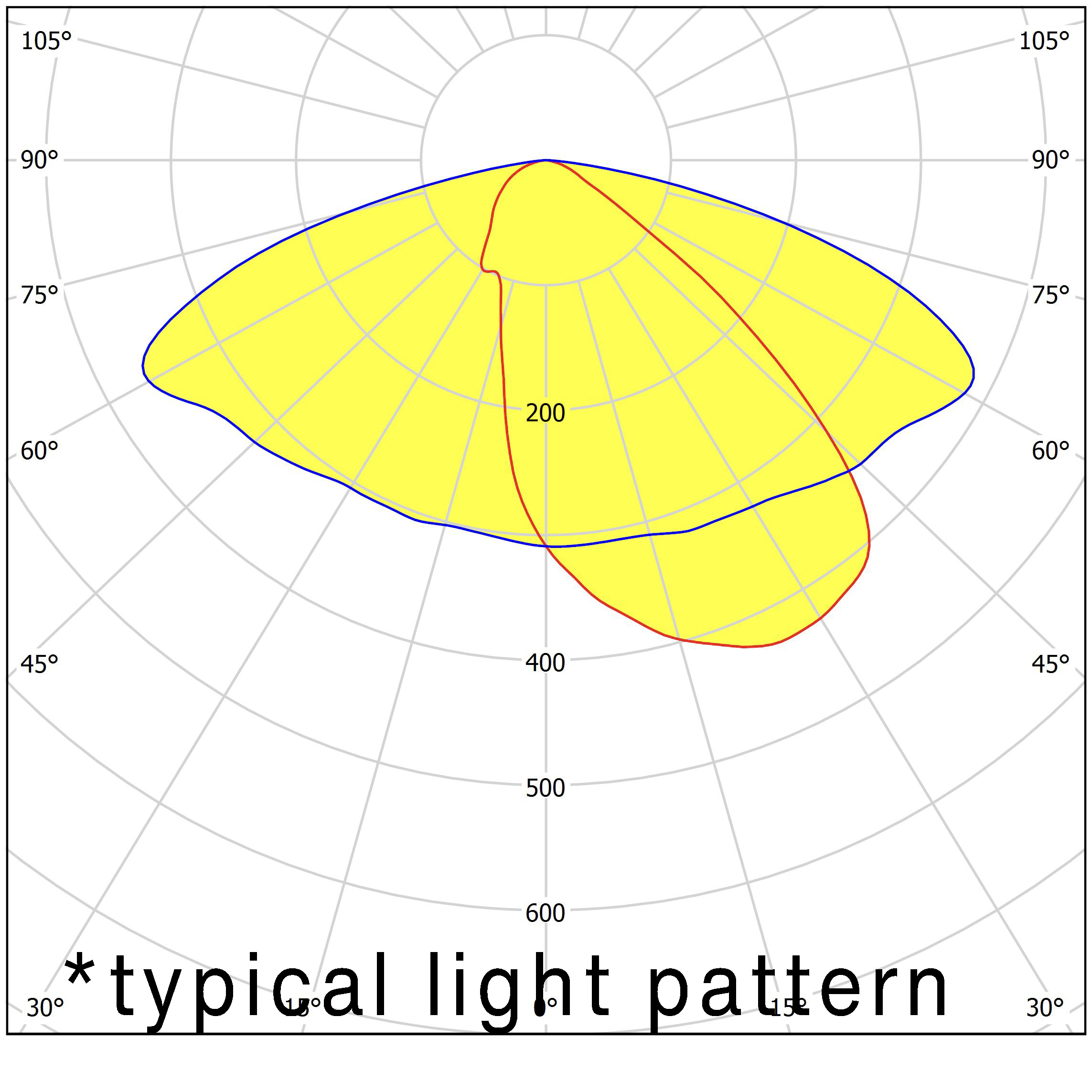

S01.01.02.412_MAXWELL-8-T2S-CC-HT

IESNA Type II Short (cutoff) beam ; HT PMMA; Excellent longitudinal luminance uniformity fulfilling EN 13201 M-class requirements and optimized for tilted poles (Design base on tilted angle of 15°, 3 lanes, single-sided lighting arrangement, pole height of 10m, pole distance of 40m. Perfectly Meets EN 13201 M3 class. )

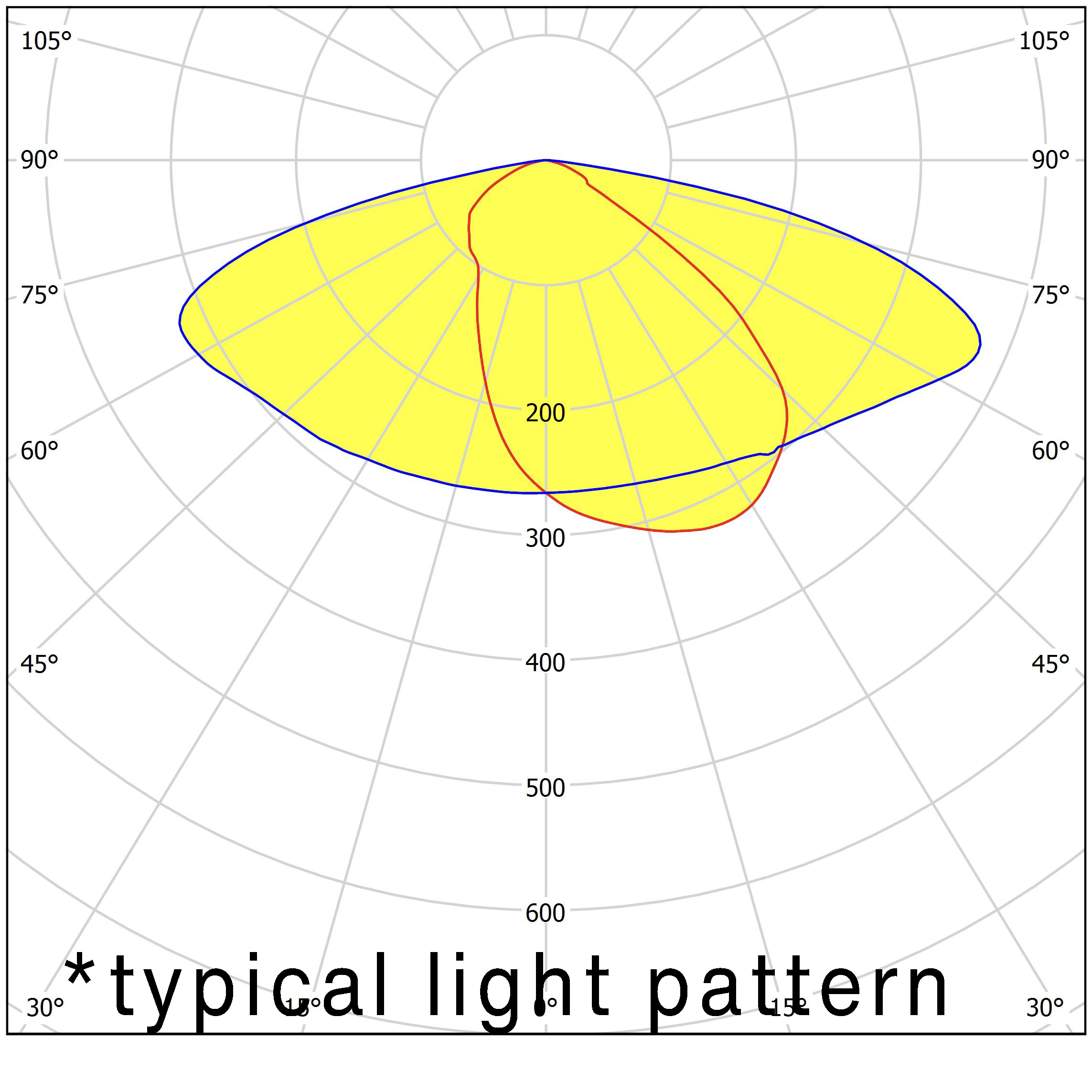

S01.01.02.413_MAXWELL-8-T2-HT

IESNA Type II (cutoff) beam; HT PMMA; Excellent longitudinal luminance uniformity fulfilling EN 13201 M-class requirements and optimized for tilted poles (Design base on tilted angle of 15°, 2X4 lanes, two-sided lighting arrangement, pole height of 12.5m, pole distance of 46-50m. Perfectly Meets EN 13201 M1 class. )

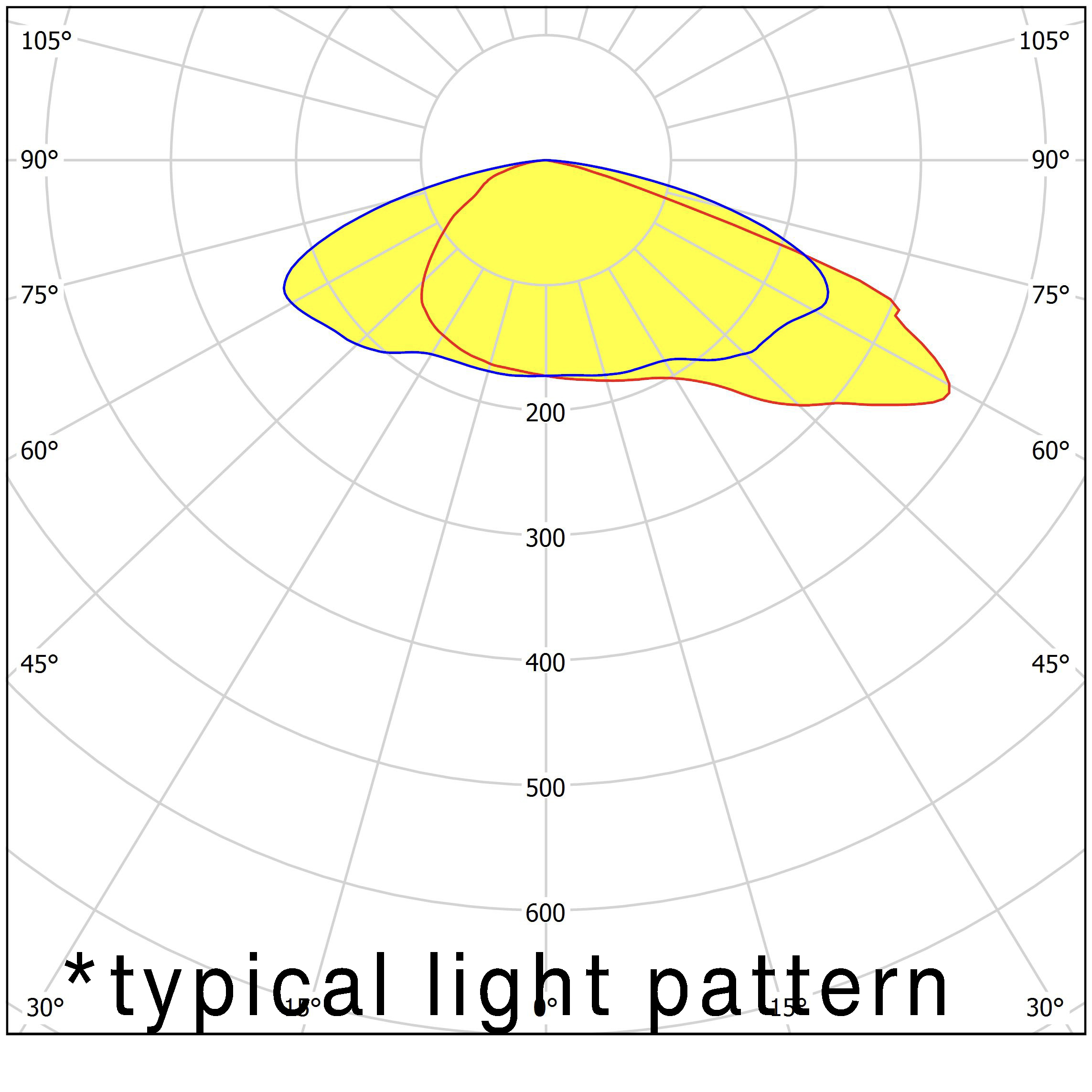

S01.01.02.414_MAXWELL-8-T4-HT

Wide IESNA Type IV forward-throw beam for wide area lighting like car parks. Fulfilling EN 13201 C-class requirements.
