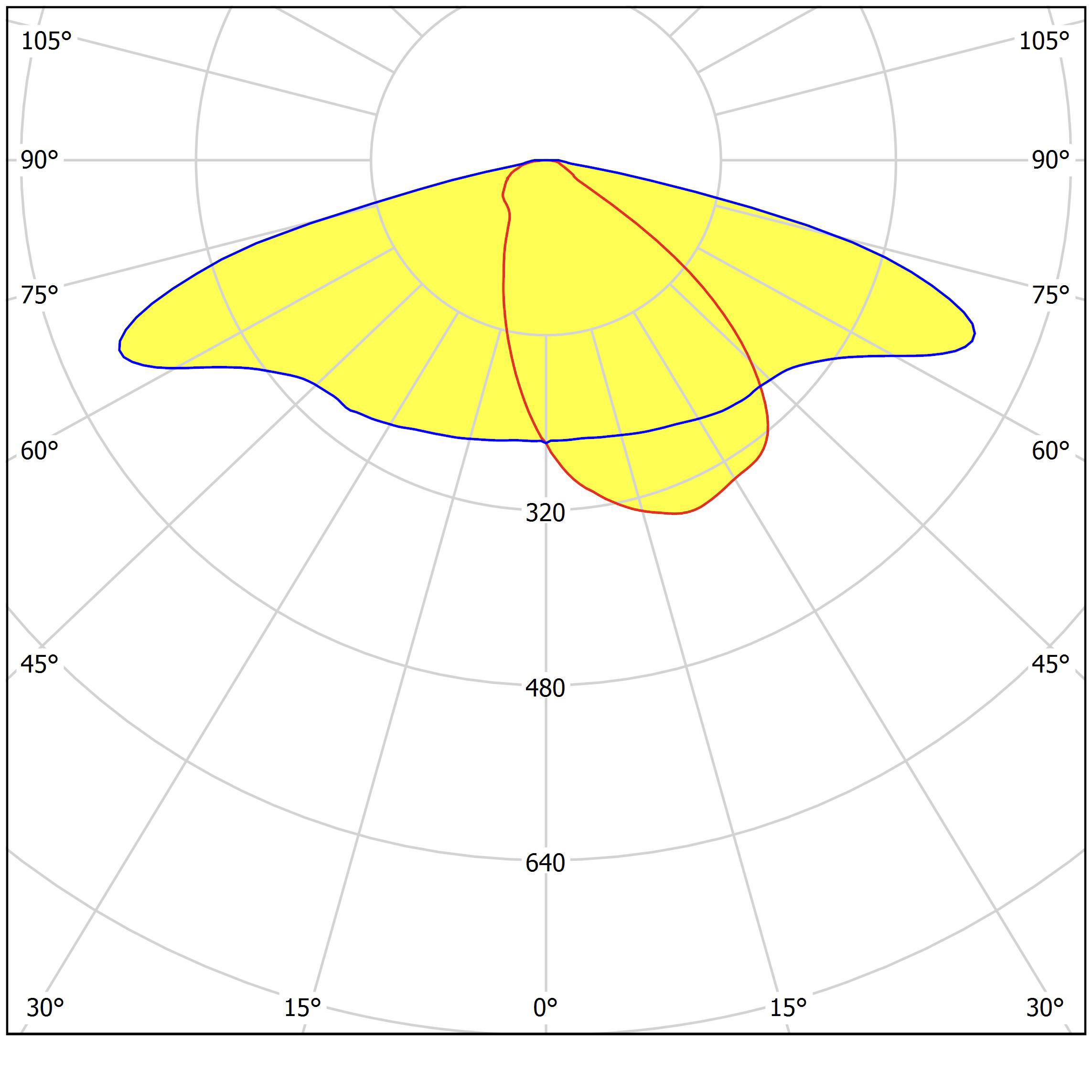

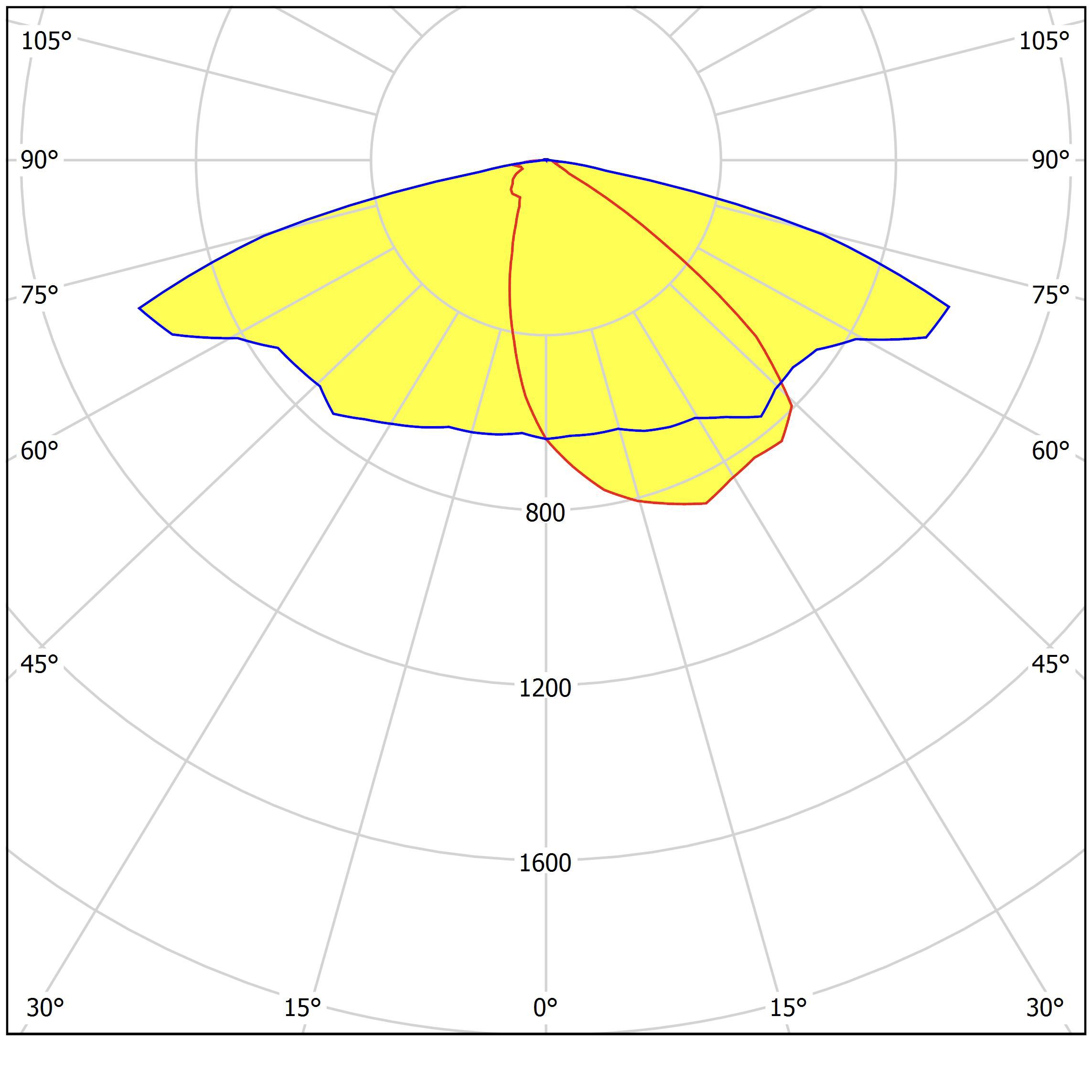

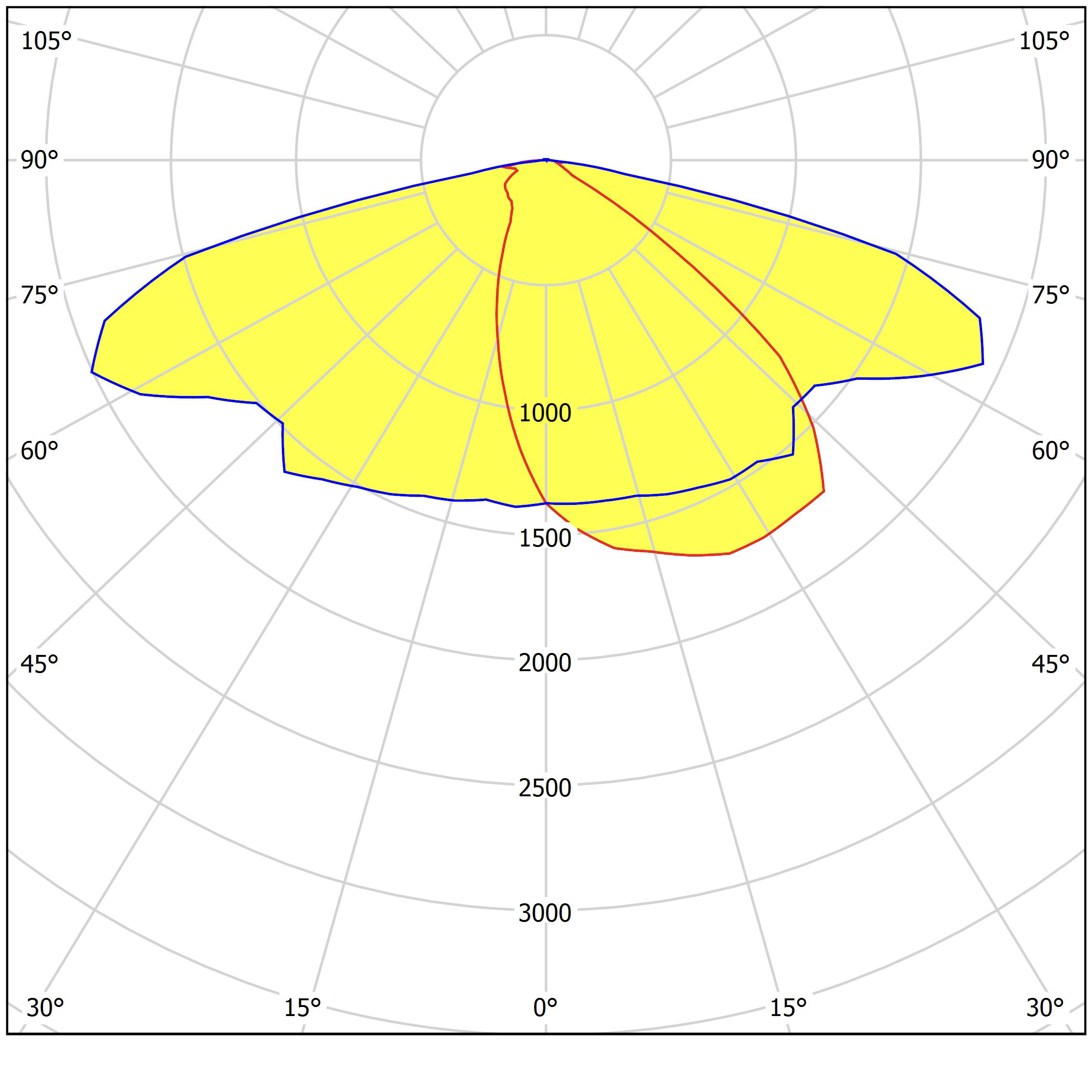

IESNA TYPE III (short) beam. FRANKLIN-24 SERIES,173 x71 mm, 3X8 arrays for up to flat 5050 size LED packages. One side with lights installed, pole distance 38M, Boom angle 15°, lightcentre height 10M, Light overhang 0.5M, road width 15M, Beam withexcellent longitudinal luminance uniformity fulfilling R3 and R2 for theroad surface EN13201 M-class.

• Lens Size

  173X71.4 mm

• Height

  10.50 mm

• Fastening

  Screw

• Optic DOME QTY

  24

• Colour

  Clear

• RoHS and REACH compliant

  Yes

• Material:

  PC
