S01.01.02.026_LAPLACE-3R-33-90A
~90º (Extra wide) beam. 286x61 mm. 33 lens for up to 3030 size LED packages.
Lens Size
285X62 mm
Height
10.70 mm
Fastening
Screw
Optic DOME QTY
33
Colour
Clear
RoHS and REACH compliant
Yes
Material:
PMMA

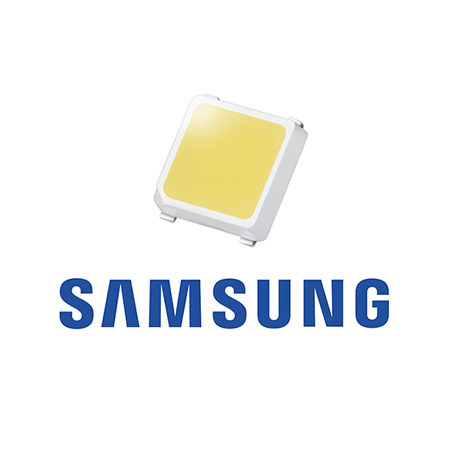

LM301B

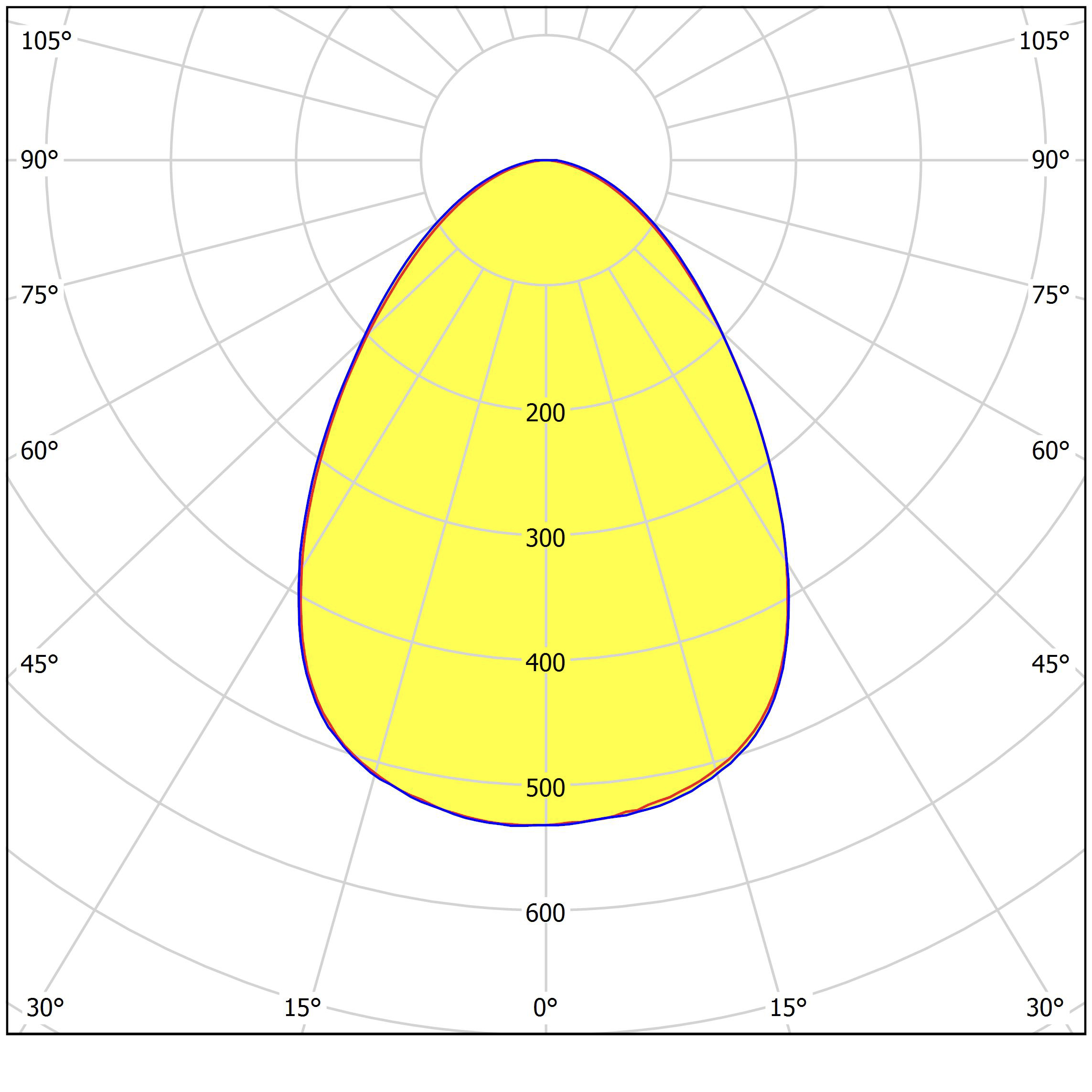

_LAPLACE-3R-33-90A (SAMSUNG LM301B) without glass_(MC33)_photometric_LDF.jpg)

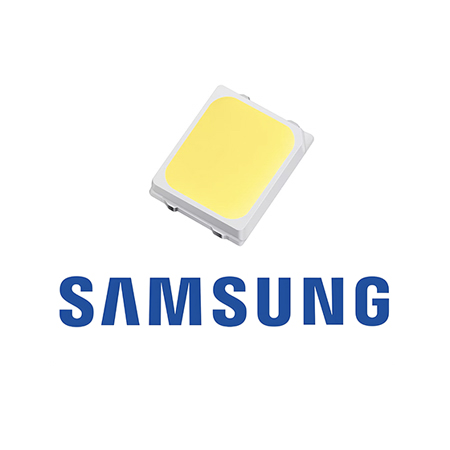

LM281B+

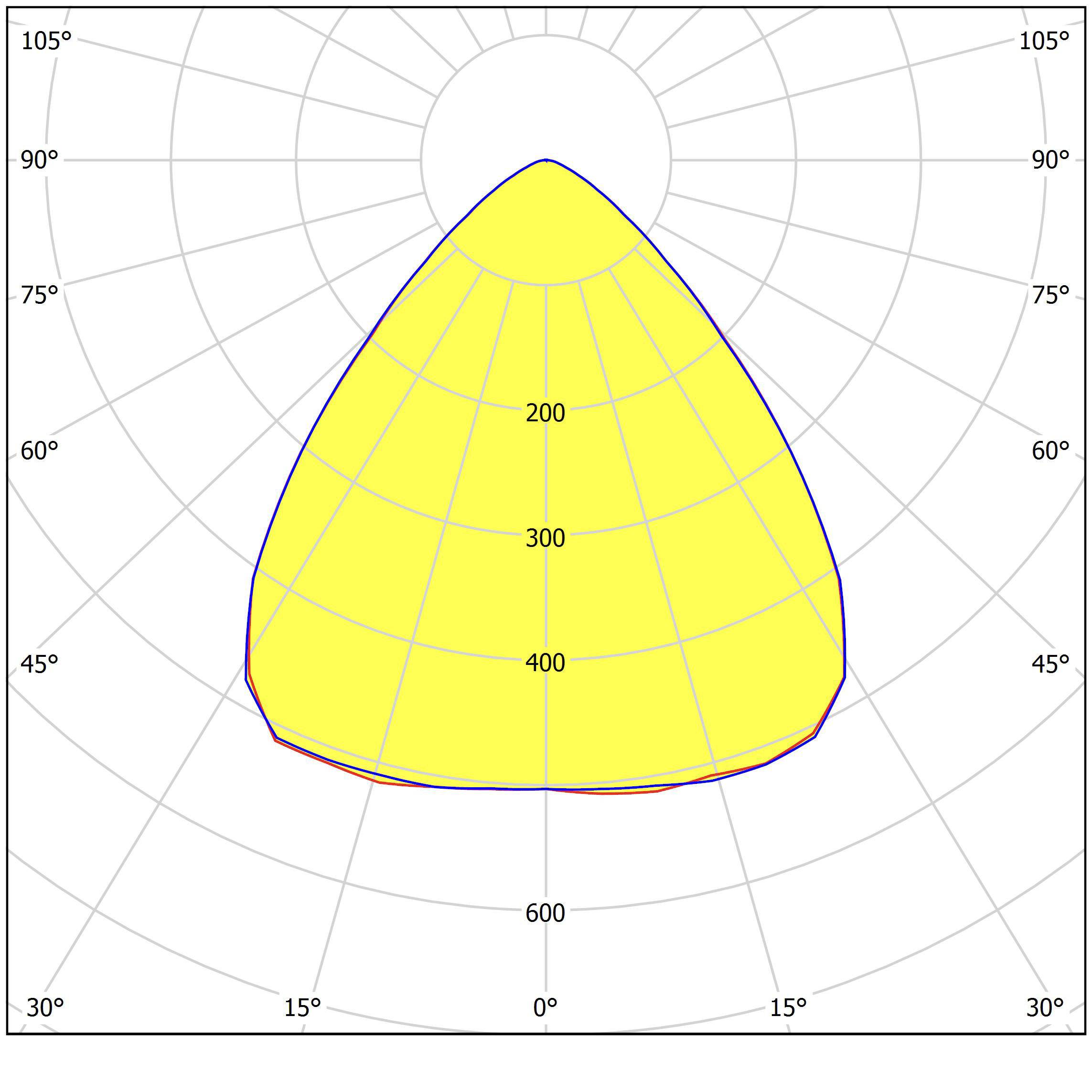

_LAPLACE-3R-33-90A (SAMSUNG LM281B%2B) without glass_SIMULATED_photometric_LDF.jpg)

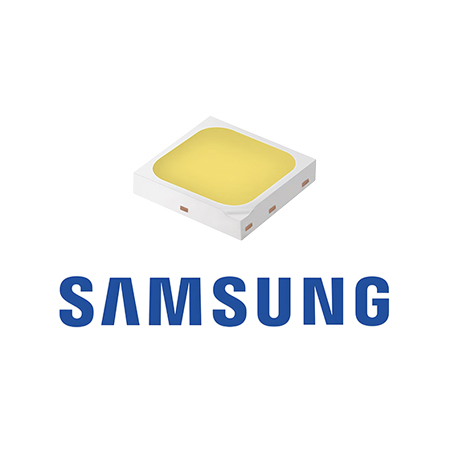

LM302Z+

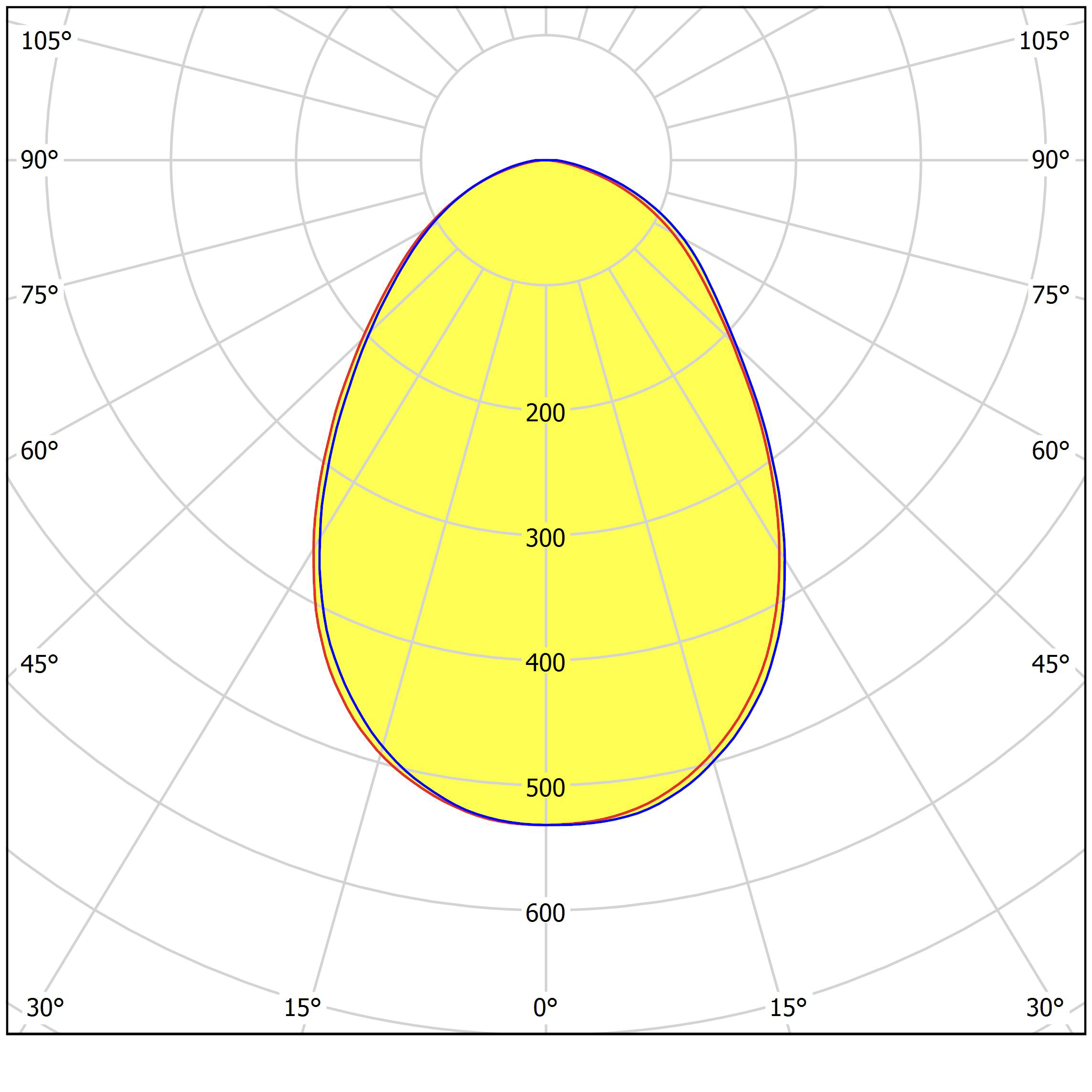

_LAPLACE-3R-33-90A (SAMSUNG LM302Z%2B) without glass_(MC66)_photometric_LDF.jpg)
LM301B

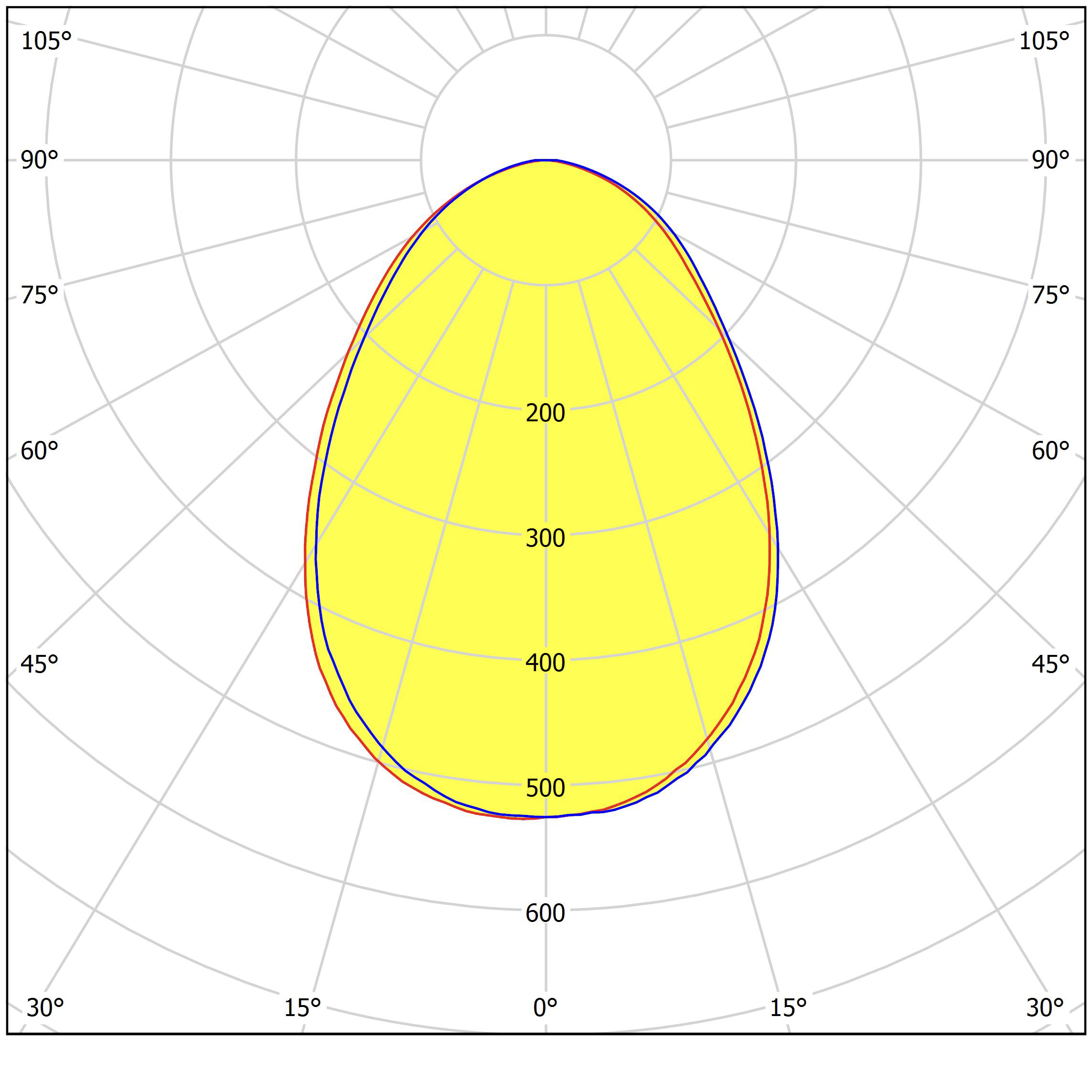

_LAPLACE-3R-33-90A (SAMSUNG LM301B) without glass_(MC66)_photometric_LDF.jpg)
